Use of Special Tools

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: To avoid deployment when troubleshooting air bag system, do not use electrical equipment such as a battery powered or AC powered voltmeter, ohmmeter, etc., or any type of electrical equipment other than that specified. Do not use a non-powered probe type tester. Instructions must be followed carefully, otherwise personal injury may result.

Be familiar with tools listed under heading "Special Tool". Study proper use of measurement tools such as Air Bag Driver/Passenger Load Tool, Connector Test Adapter Kit and digital multimeter.

Special Tool

09932-76010 (Connector Test Adapter Kit)

This must be used whenever a diagnostic procedure requests checking or probing a terminal.

Using appropriate adapter in special tool will ensure that no damage to terminal will occur from multimeter probe, such as spreading or bending.

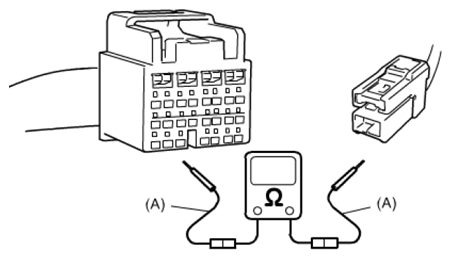

Fig 1: Identifying Connector Test Adapter Kit

The adapter (1) will also give an idea of whether or not contact tension is sufficient, helping to find an open or intermittent open due to poor terminal contact. SDM shorting bar release tool (2) is included in connector test adapter kit. Inserting it into SDM connector (3) will release shorting bar.

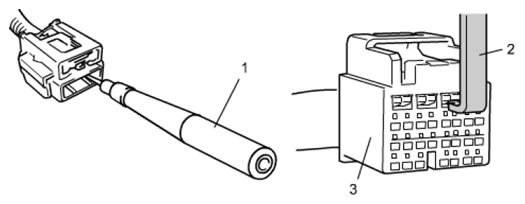

Fig 2: Identifying SDM Shorting Bar Release Tool, Connector Test Adapter Kit And SDM Connector

Special Tool

(B): 09932-75010 (Air bag driver/passenger load tool)

This tool is used as a diagnostic aid and safety device to prevent inadvertent air bag (inflator) module deployment.

The load tool has three connectors attached to its case which are electrically functional and serve as resistive load substitutions.

Use "STEERING WHEEL" connector instead of resistance load of all inflator modules and pretensioners.

Do not use "BASE OF COLUMN" and "PASSENGER INFLATOR".

By connecting load tool instead of inflator modules and pretensioners, service work to decide location of cause of trouble - whether it is in harness or in component - can be performed.

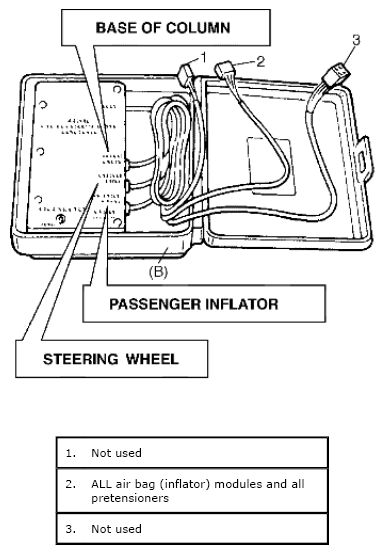

Fig 3: Identifying Air Bag Driver / Passenger Load Tool
