Rear Side Air Bag (Inflator) Module Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable air bag system.
  2. Remove rear seat cushion assembly.
  3. Remove rear bolster.
  4. Remove rear pillar inner trim.
  5. Open cap (1).
  6. Disconnect rear side air bag (inflator) module connector (3) as show in figure.
    1. Release lock (2).
    2. Disconnect connector with lock released.

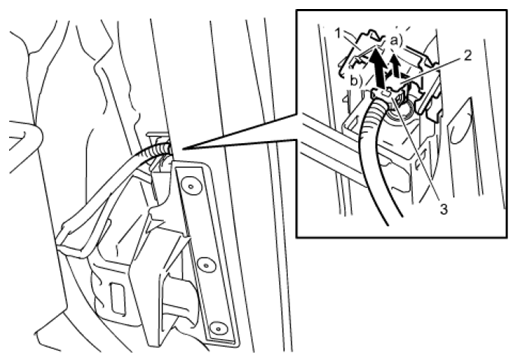

      Fig 1: Disconnecting Rear Side Air Bag (Inflator) Module Connector
      G06526983
  7. Remove rear side air bag (inflator) module bolt (1) and clips (2) and remove rear side air bag (inflator) module (3).

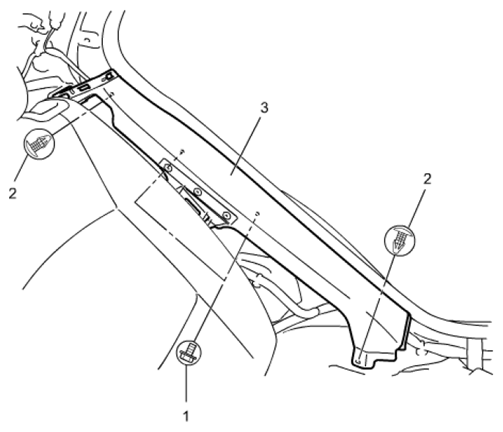

Fig 2: Identifying Rear Side Air Bag (Inflator) Module Bolt, Clips And Rear Side Air Bag (Inflator) Module
G06526984
