Driver Air Bag (Inflator) Module Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Disable air bag system.
Remove mounting bolts (2) of driver air bag (inflator) module at both sides of steering wheel (1) using torx wrench (T30).

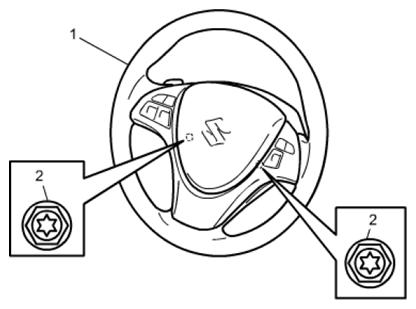

Fig 1: Identifying Mounting Bolts And Steering Wheel
Disconnect driver air bag (inflator) module connector (2) as shown in figure.
1. Release lock (1).
2. Disconnect connector with lock released.

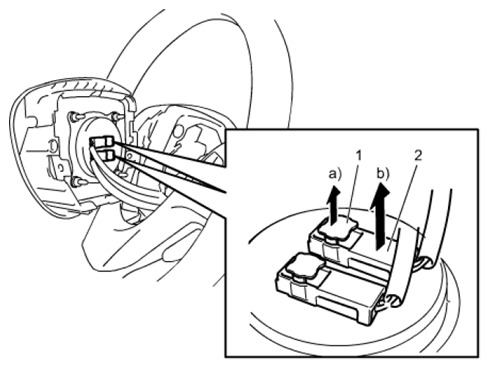

  Fig 2: Disconnecting Driver Air Bag (Inflator) Module Connector
Remove driver air bag (inflator) module from steering wheel.
