Front Speaker and Rear Speaker Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door trim.
  2. Remove 3 screws and remove front or rear speaker (1).
  3. Disconnect speaker connector.

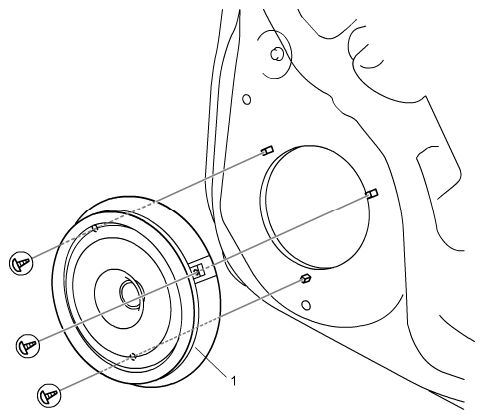

    Fig 1: Identifying Front Or Rear Speaker With Screws
    G06530314Courtesy of SUZUKI OF AMERICA CORP.
