Trunk Lid Opener Switch Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove trunk lid opener switch.
Check continuity between terminals of trunk lid opener switch connector at each switch position. If check result is not as specified, replace switch.

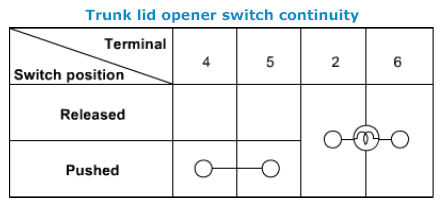

Fig 1: Trunk Lid Opener Switch Continuity Chart
Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Trunk Lid Opener Switch Terminals
Courtesy of SUZUKI OF AMERICA CORP.
