System
>>
Engine General Information & Diagnosis
>>
Diagnostic Information and Procedures
>>
DTC P0171/P0172: System Too Lean/System Too Rich
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

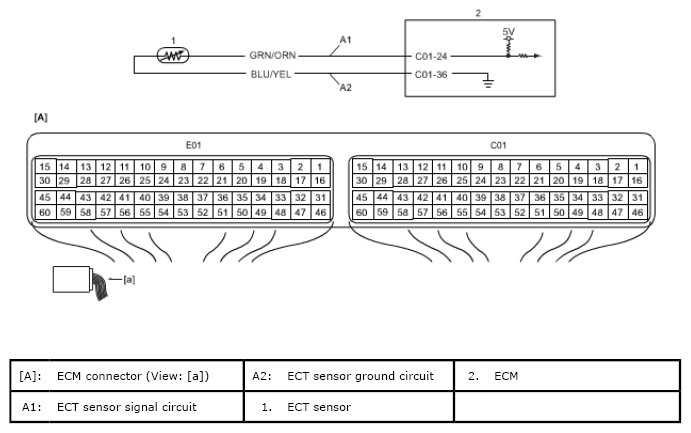

Fig 1: ECT Sensor Signal Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
