Fuel Tank Removal and Installation: Removal
- Relieve fuel pressure in fuel feed line, see FUEL PRESSURE RELIEF PROCEDURE .
- Disconnect negative (-) cable from battery.
- Hoist vehicle.
- Remove exhaust pipe No. 2, see EXHAUST SYSTEM COMPONENTS .
- For 4WD model, remove propeller shaft, see PROPELLER SHAFT ASSEMBLY REMOVAL AND INSTALLATION .
- With cable connected, detach parking brake cable clamp from body, see PARKING BRAKE COMPONENTS .
- Remove fuel filler hose from fuel tank referring to Step 1) to Step 4) of "Removal" under FUEL TANK INLET VALVE REMOVAL AND INSTALLATION .

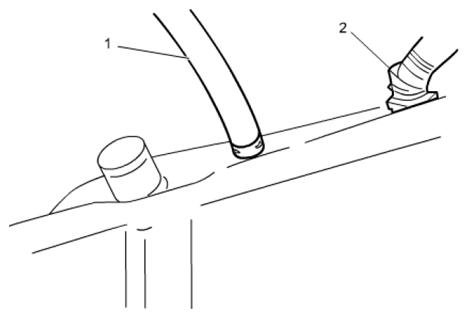

- Disconnect breather hose (1) and EVAP canister hose (2).

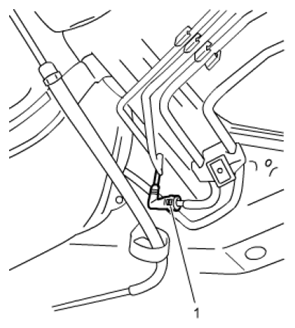

- Disconnect fuel feed pipe (1), see FUEL HOSE DISCONNECTING AND RECONNECTING .

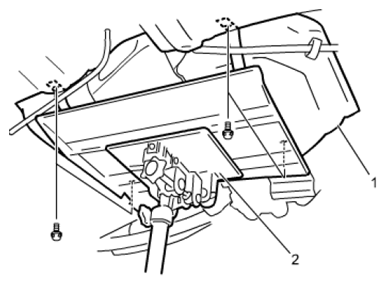

- Support fuel tank (1) with jack (2) and remove fuel tank.
