Fuel Tank Removal and Installation: Installation

Reference: FUEL TANK INSPECTION

Reference: FUEL TANK FLUSHING PROCEDURE

WARNING: Failure to take proper precautions when reinstalling the fuel tank connections can result in fuel leakage or damage. Clean the outside surface of the pipe where each quick joint is to be installed, push the pipe into the joint until the joint lock clicks, and then confirm that the pipe is connected securely.
  1. If parts have been removed from fuel tank, install them before installing fuel tank to vehicle.
  2. Raise fuel tank (1) with jack (2) and then install fuel tank to vehicle.

    Tightening torque

    Fuel tank bolt (a): 45 N.m (4.6 kg-m, 33.5 lbf-ft)

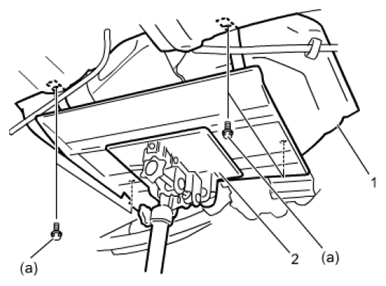

    Fig 1: Identifying Fuel Tank With Jack And Fuel Tank Bolts
    G06526556Courtesy of SUZUKI OF AMERICA CORP.
  3. Connect fuel feed pipe (fuel pump side) (1) to fuel feed pipe (body side) (2), and clamp them securely, see FUEL HOSE DISCONNECTING AND RECONNECTING .
    NOTE: Clearance "a" between quick joint (3) and parking cable clamp (4) should be more than 15 mm.

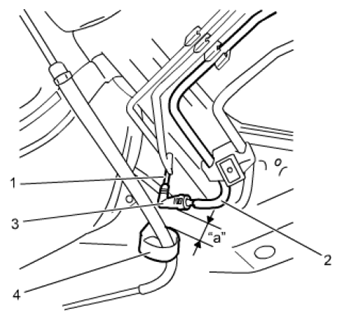

    Fig 2: Identifying Fuel Feed Pipe (Fuel Pump Side) And Fuel Feed Pipe (Body Side)
    G06526557Courtesy of SUZUKI OF AMERICA CORP.
  4. Connect breather hose (1) and EVAP canister hose (2).

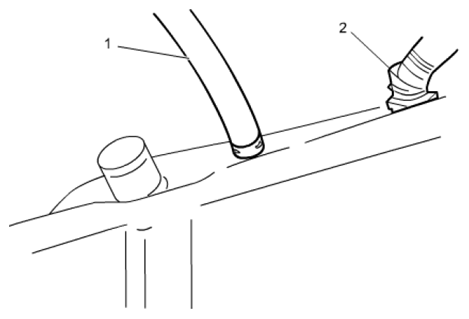

    Fig 3: Identifying Breather Hose And EVAP Canister Hose
    G06526558Courtesy of SUZUKI OF AMERICA CORP.
  5. Install fuel filler hose (1) to fuel tank and secure it with clamps (2) referring to FUEL HOSE DISCONNECTING AND RECONNECTING .
  6. Connect fuel tank harness connector (3).

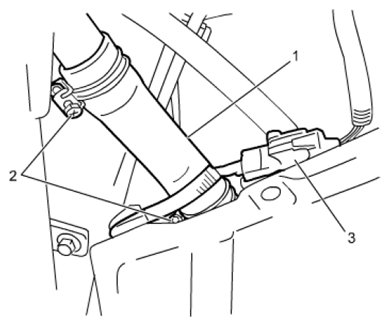

    Fig 4: Identifying Fuel Filler Hose With Clamps
    G06526559Courtesy of SUZUKI OF AMERICA CORP.
  7. Install parking brake cable clamp to vehicle body, see PARKING BRAKE COMPONENTS .
  8. For 4WD model, install propeller shaft, see PROPELLER SHAFT ASSEMBLY REMOVAL AND INSTALLATION .
  9. Install exhaust pipe No. 2, see EXHAUST SYSTEM COMPONENTS .
  10. Connect negative (-) cable to battery.
  11. With engine stationary, ignition mode of keyless push start system in "ON" and check for fuel leaks, see FUEL LEAKAGE CHECK PROCEDURE .
