Fuel Pump Assembly Removal and Installation: Removal

  1. Remove fuel tank from vehicle, see FUEL TANK REMOVAL AND INSTALLATION .
  2. Disconnect fuel pump/fuel level sensor connector (2) from fuel pump assembly (1).
  3. Disconnect fuel feed pipe (3) from fuel pump assembly, see FUEL HOSE DISCONNECTING AND RECONNECTING .
  4. Remove fuel pump nuts (4) and ground terminal (5).

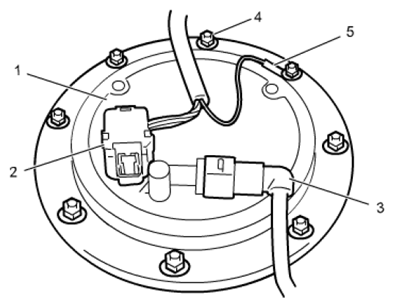

    Fig 1: Identifying Fuel Pump Assembly, Fuel Pump Nuts And Ground Terminal
    G06526561Courtesy of SUZUKI OF AMERICA CORP.
  5. For 4WD model, lift fuel pump and disconnect fuel suction pipe (1) from fuel pump assembly, see FUEL HOSE DISCONNECTING AND RECONNECTING FUEL TANK REMOVAL AND INSTALLATION .

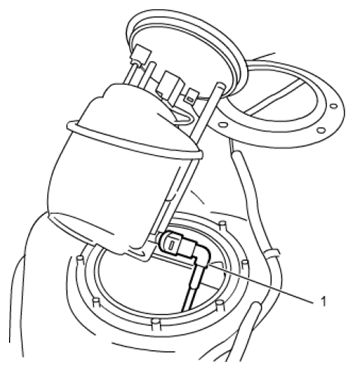

    Fig 2: Identifying Fuel Suction Pipe And Fuel Pump Assembly
    G06526562Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove fuel pump assembly from fuel tank.
