Fuel Pipe Removal and Installation: Removal
- Relieve fuel pressure in fuel feed line, see FUEL PRESSURE RELIEF PROCEDURE .
- Remove battery, battery tray and battery bracket, see BATTERY REMOVAL AND INSTALLATION .
- Remove left side main floor undercover.

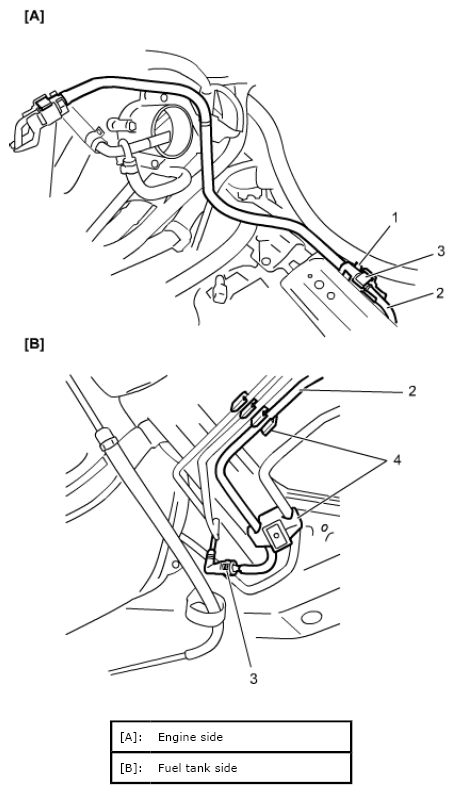

- Remove fuel pipe stopper (1) and disconnect quick joint (3) of fuel feed pipe, see FUEL HOSE DISCONNECTING AND RECONNECTING .
- Mark location of clamps (4) on fuel feed pipe (body side) (2), so that clamps can be reinstalled to where they were.
- Remove clamps (4) from vehicle body, fuel feed pipe (body side) (2) and brake pipes.CAUTION: Fuel pipes and brake pipes may be bent or damaged if you are not careful when unclamping them. Be sure to properly support fuel pipes and brake pipes when removing clamps.
- Remove fuel feed pipe (body side) (2).
