Fuel Pipe Removal and Installation: Installation

  1. Install clamps (1) to marked location on pipe. If clamp is deformed or broken, replace it with new one.
  2. Install fuel feed pipe with pipe clamps (1) to vehicle.
  3. Connect quick joint (2) of fuel feed pipe and install fuel pipe stopper (3), see FUEL HOSE DISCONNECTING AND RECONNECTING .
    NOTE: Clearance "a" between quick joint and parking cable clamp (4) should be more than 15 mm.

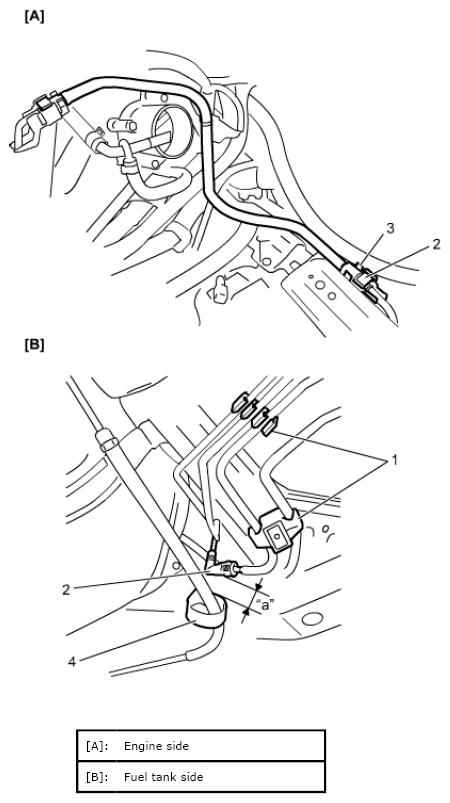

    Fig 1: Identifying Quick Joint And Parking Cable Clamp
    G06526534Courtesy of SUZUKI OF AMERICA CORP.
  4. Install left side main floor undercover.
  5. Install battery bracket and battery tray, see BATTERY REMOVAL AND INSTALLATION .
  6. Install ECM and bracket, see ECM REMOVAL AND INSTALLATION .
  7. Install air cleaner assembly, see AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION .
  8. Install battery, see BATTERY REMOVAL AND INSTALLATION .
  9. With engine stopped, ignition mode of keyless push start system in "ON" and check for fuel leaks, see FUEL LEAKAGE CHECK PROCEDURE .
