Clamp Other Than Around Fuel Tank

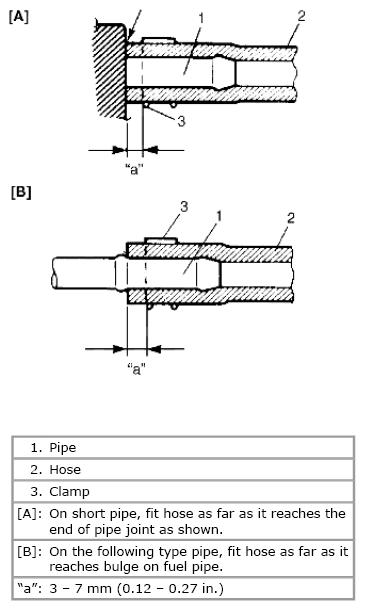

Fig 1: Identifying Dimensions And Clamp Other Then Around Fuel Tank
G06526526Courtesy of SUZUKI OF AMERICA CORP.
