Clamp Around Fuel Tank

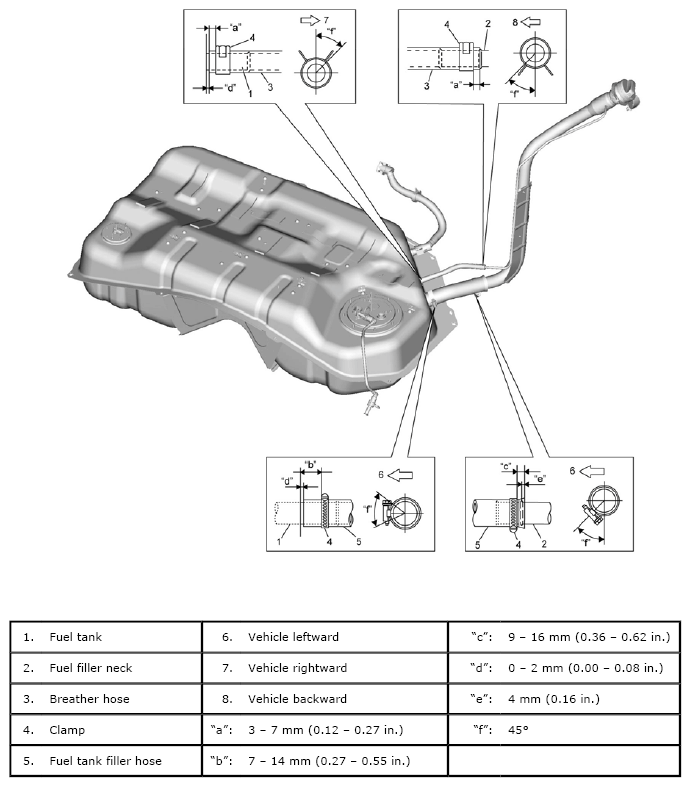

Fig 1: Identifying Dimensions And Clamp Around Fuel Tank
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
