Side Clearance

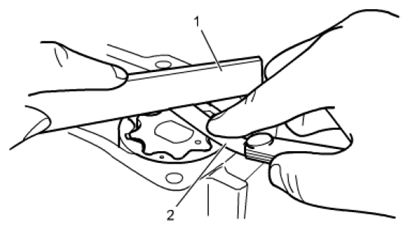

Using straightedge (1) and feeler gauge (2), measure side clearance of inner rotor.
If side clearance is out of specification, replace oil pump assembly.
Oil pump side clearance for oil pump inner rotor
Standard: 0.035 - 0.070 mm (0.0014 - 0.0027 in.)
