Oil Pump Assembly Disassembly and Reassembly: Disassembly

Remove oil pump sprocket referring to step 3) in "Removal" under BALANCER SHAFT REMOVAL AND INSTALLATION .
Loosen oil pump cover bolts (2) and remove oil pump cover (1).

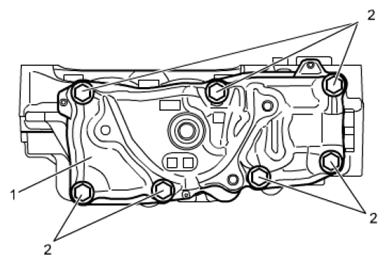

Fig 1: Identifying Oil Pump Cover And Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove outer rotor (1) and inner rotor (2).
CAUTION: Mark on oil pump housing the direction of which match mark (3) on outer rotor is facing. Outer rotor must be reinstalled in the original direction.

Fig 2: Identifying Outer Rotor And Inner Rotor
Courtesy of SUZUKI OF AMERICA CORP.
Remove relief valve (1) and spring (2) by removing retainer (3) from oil pump cover (4).

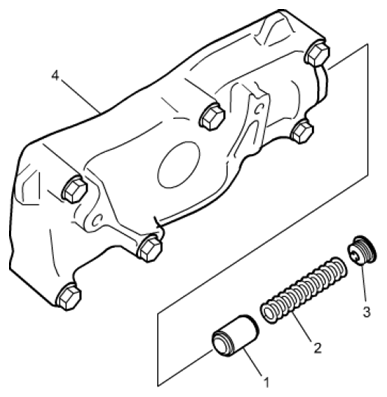

Fig 3: Identifying Relief Valve, Spring, Retainer And Oil Pump Cover
Courtesy of SUZUKI OF AMERICA CORP.
