Starting Motor Disassembly and Reassembly: Disassembly

Reference: STARTING MOTOR REMOVAL AND INSTALLATION

Reference: STARTING MOTOR COMPONENTS

  1. Before disassembly, draw matchmarks (1) and (2) shown in figure, in order to make it easier to reassemble components in the correct position.

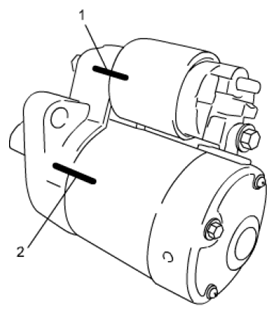

    Fig 1: Identifying Matchmark
    G06528257Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove nut (1) and disconnect lead wire (2) from magnetic switch (3).

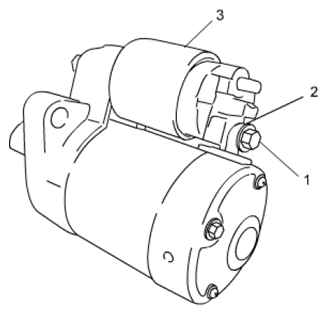

    Fig 2: Identifying Magnetic Switch, Lead Wire And Nut
    G06528258Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove screws (4) and pull out magnetic switch (1) from starting motor assembly.
  4. Disassemble spring (2) and plunger (3) from magnetic switch body
    CAUTION: Do not disassemble magnetic switch body.
    Replace it as assembly, if required.

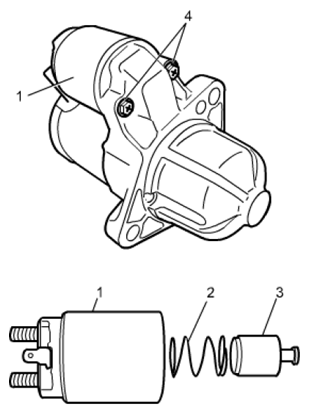

    Fig 3: Identifying Magnetic Switch, Spring, Plunger And Screws
    G06528259Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove bolts (1) and separate yoke from armature housing (2).

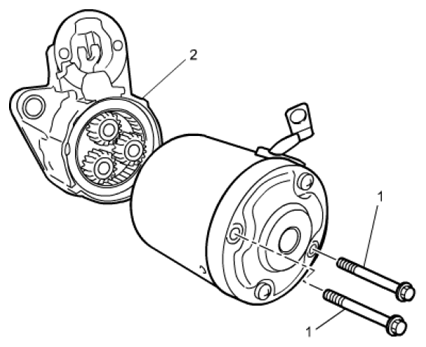

    Fig 4: Identifying Armature Housing And Bolts
    G06528260Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove grommet (2) and planetary gears (1).

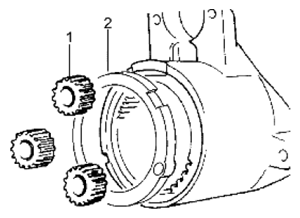

    Fig 5: Identifying Grommet And Planetary Gears
    G06528261Courtesy of SUZUKI OF AMERICA CORP.

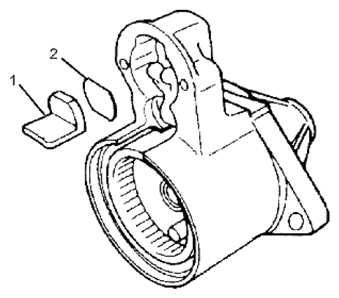

  7. Remove seal rubber (1) and plate (2).
    Fig 6: Identifying Seal Rubber And Plate
    G06528262Courtesy of SUZUKI OF AMERICA CORP.

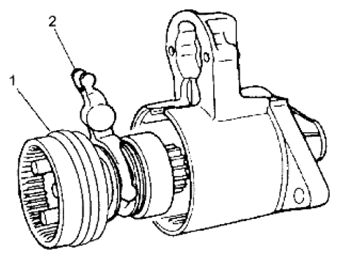

  8. Remove shaft assembly (1) with drive lever (2).
    Fig 7: Identifying Shaft Assembly With Drive Lever
    G06528263Courtesy of SUZUKI OF AMERICA CORP.

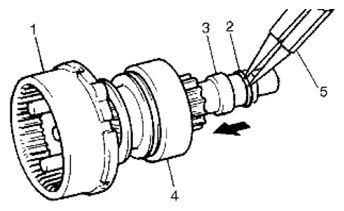

  9. With pinion stop ring (3) moved to overrunning clutch (4) side (arrow side), remove snap ring (2) by using snap ring pliers (5).
  10. Remove pinion stop ring (3), overrunning clutch (4) and internal gear (1) from gear shaft.
    Fig 8: Removing Pinion Stop Ring, Overrunning Clutch And Internal Gear From Gear Shaft
    G06528264Courtesy of SUZUKI OF AMERICA CORP.
  11. Remove end housing (1) and remove brush assembly (2) from yoke (3).

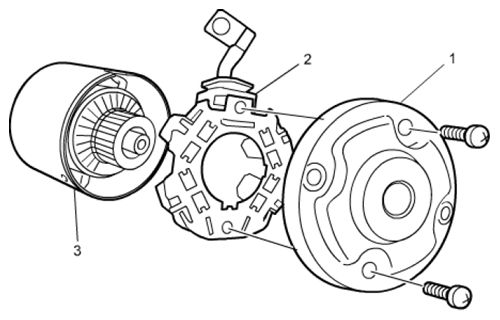

    Fig 9: Identifying End Housing, Brush Assembly And Yoke
    G06528265Courtesy of SUZUKI OF AMERICA CORP.
  12. Remove armature (1) from yoke (2).

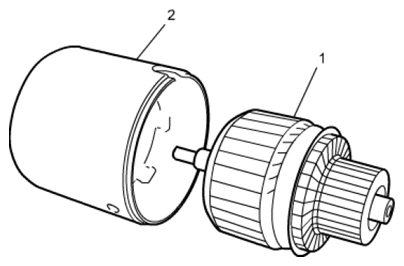

    Fig 10: Identifying Armature And Yoke
    G06528266Courtesy of SUZUKI OF AMERICA CORP.
  13. Remove brushes (1) and brush springs (2).

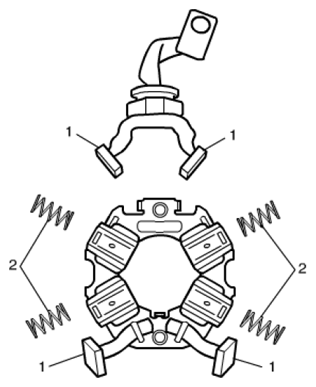

    Fig 11: Identifying Brushes And Brush Springs
    G06528267Courtesy of SUZUKI OF AMERICA CORP.
