Instrument Panel Removal and Installation: Installation

Reverse removal procedure noting the following points.

• Do not let cables or wire harnesses be pinched when installing parts.
• Enable air bag system, see ENABLING AIR BAG SYSTEM .
• Tighten steering support member side bolts in numerical order ("1" - "2") to specified torque.

  Tightening torque

  Steering support member bolt (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)

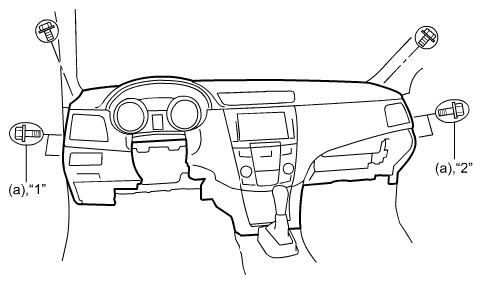

  Fig 1: Identifying Steering Support Member Bolt In Tightening Sequence

  Courtesy of SUZUKI OF AMERICA CORP.
• Conduct every initialization after all works are completed.
