Instrument Panel Disassembly and Reassembly: Disassembly

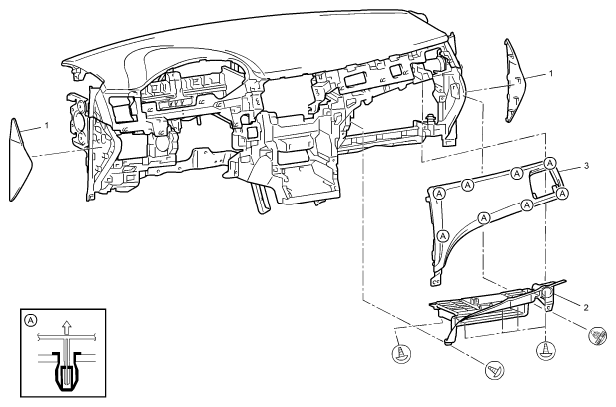

  1. Remove the following parts as shown in figure.
    • Instrument panel side cover (1)
    • Service manual case (2)
    • Passenger side instrument panel garnish (3)
      Fig 1: Identifying Instrument Panel Side Cover, Service Manual Case And Passenger Side Instrument Panel Garnish
      G06529063Courtesy of SUZUKI OF AMERICA CORP.

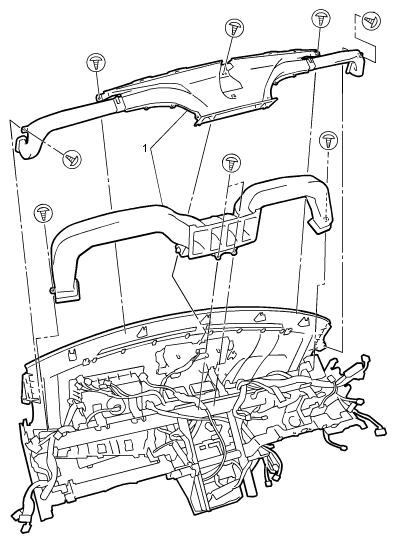

  2. Remove screws and remove ventilator ducts (1).
    Fig 2: Identifying Ventilator Ducts With Screws
    G06529064Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove passenger air bag (inflator) module, see PASSENGER AIR BAG (INFLATOR) MODULE REMOVAL AND INSTALLATION .

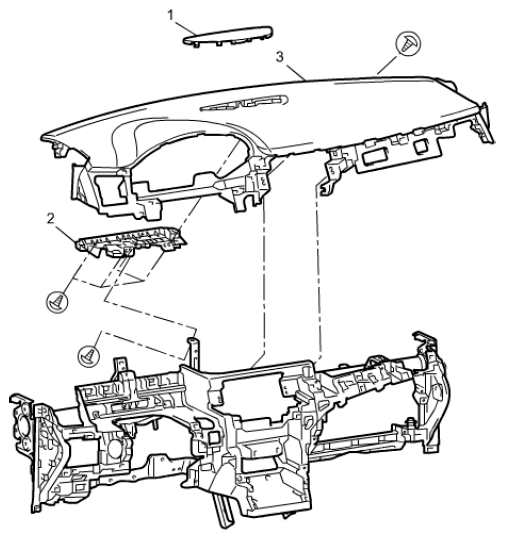

  4. Remove instrument panel speaker cover (1).
  5. Disconnect instrument panel speaker connector.
  6. Remove screws and remove instrument panel speaker base (2).
  7. Remove screws and remove instrument panel main upper panel (3).
    Fig 3: Identifying Instrument Panel Speaker, Base And Upper Panel
    G06534203Courtesy of SUZUKI OF AMERICA CORP.

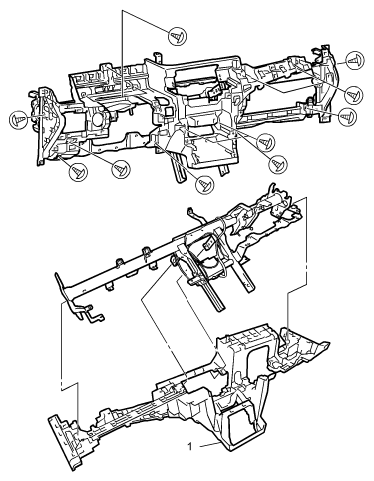

  8. Remove screws and remove instrument panel main lower panel (1).
    Fig 4: Identifying Instrument Panel Main Lower Panel And Screws
    G06529065Courtesy of SUZUKI OF AMERICA CORP.
