Parking Sensor System Control Module Removal and Installation (If Equipped): Removal

  1. Remove partition trim, see TRIM REMOVAL AND INSTALLATION .
  2. Disconnect parking sensor system control module connector (1) from parking sensor system control module.
  3. Remove screws (2) and remove parking sensor system control module (3).

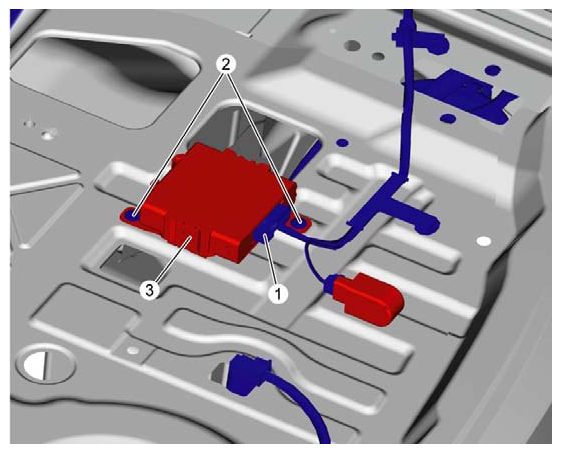

    Fig 1: Identifying Parking Sensor System Control Module Connector, Parking Sensor System Control Module And Screws
    G06529068Courtesy of SUZUKI OF AMERICA CORP.
