G-4 Navigation System Circuit Diagram (with Audio Amplifier)

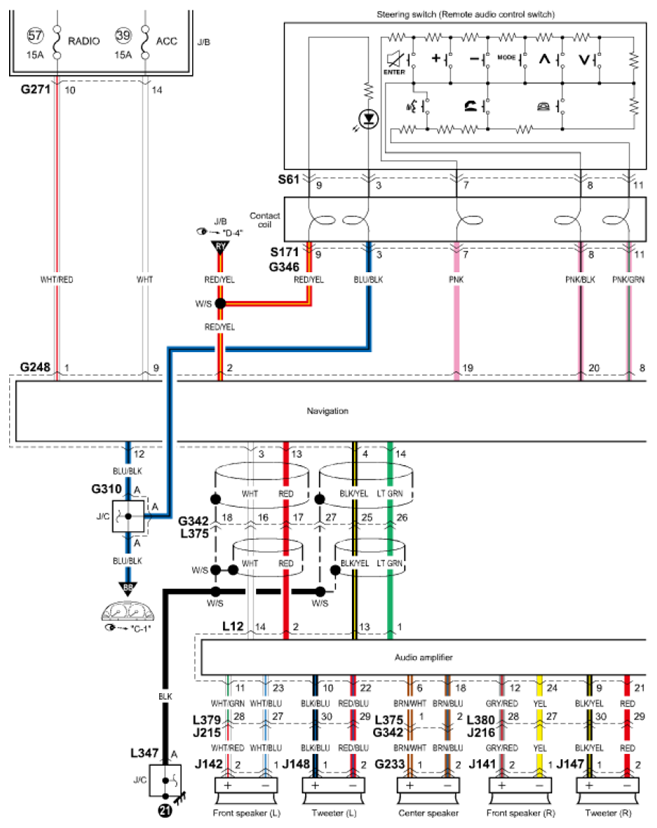

Fig 1: Navigation System Circuit Diagram (With Audio Amplifier) (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

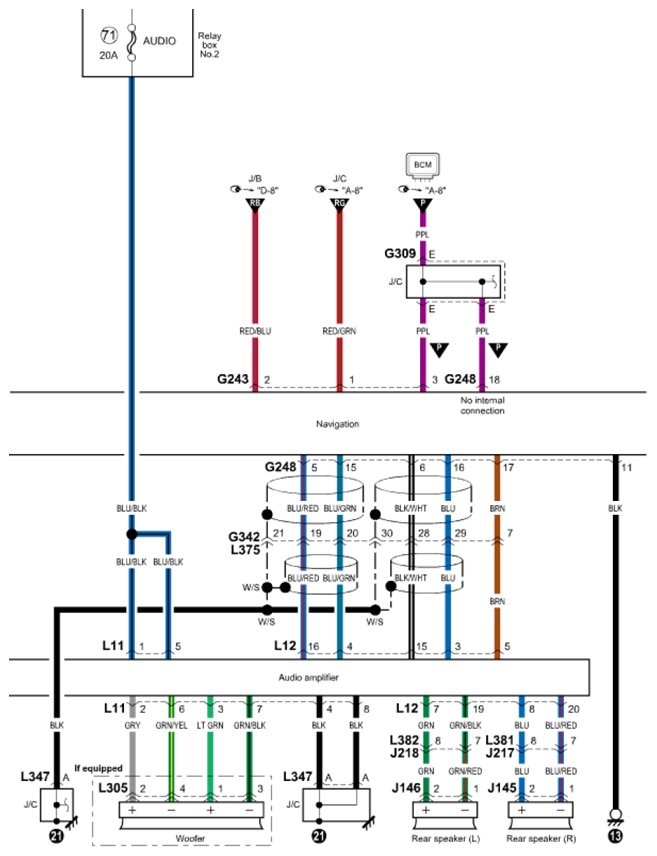

Fig 2: Navigation System Circuit Diagram (With Audio Amplifier) (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

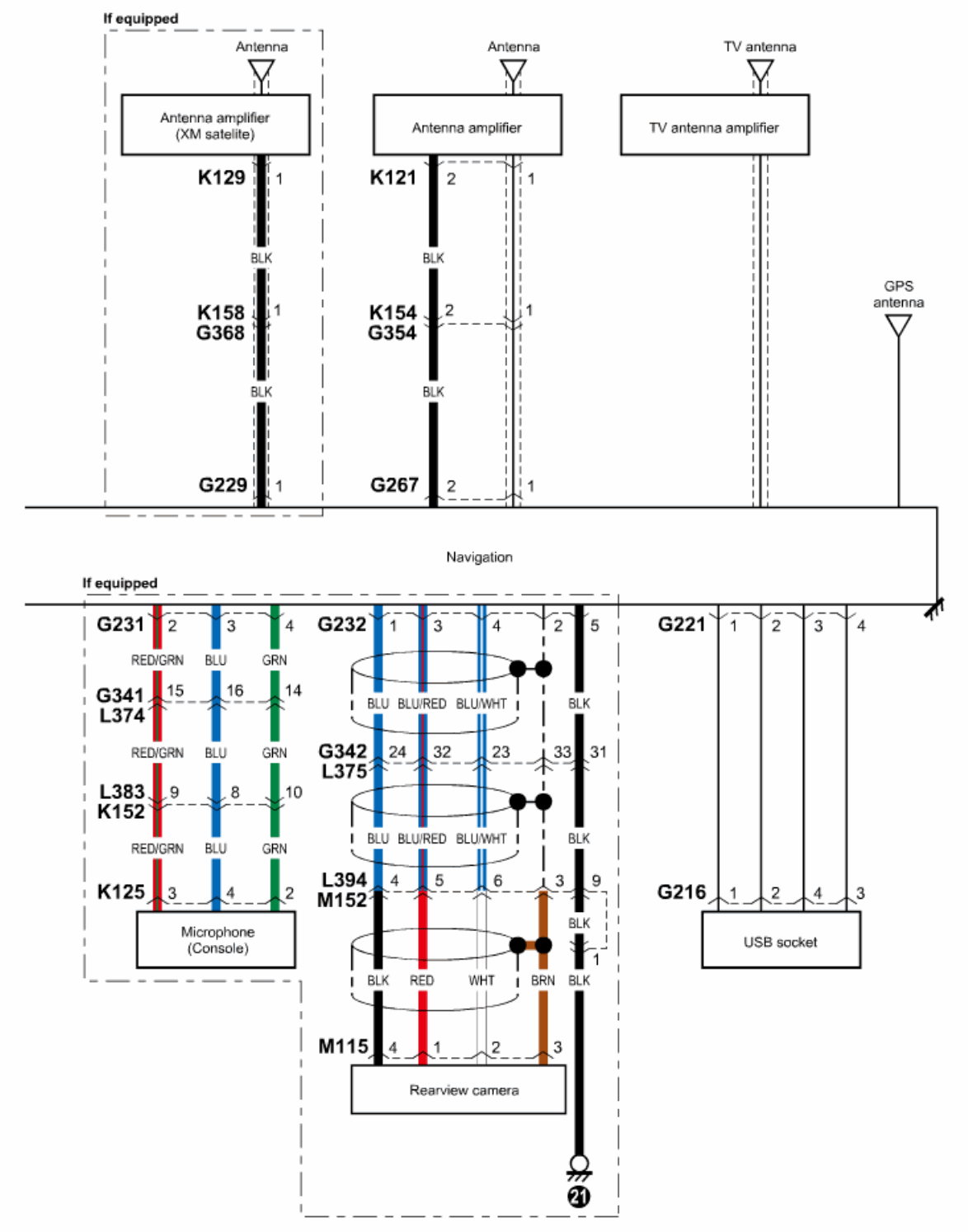

Fig 3: Navigation System Circuit Diagram (With Audio Amplifier) (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
