G-3 Accessory Socket System Circuit Diagram

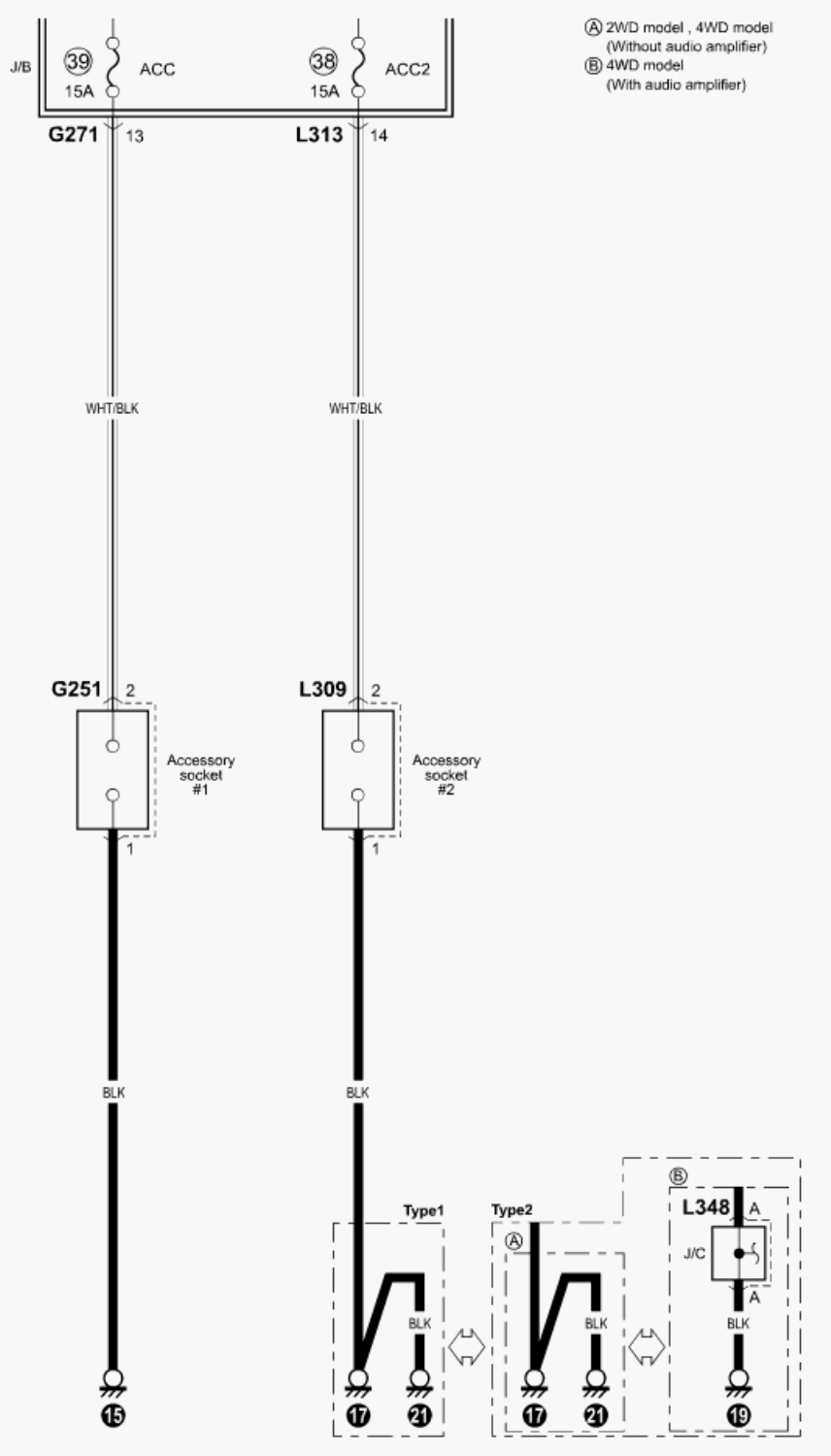

Fig 1: Accessory Socket System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
