G-1 Audio System Circuit Diagram (without Audio Amplifier)

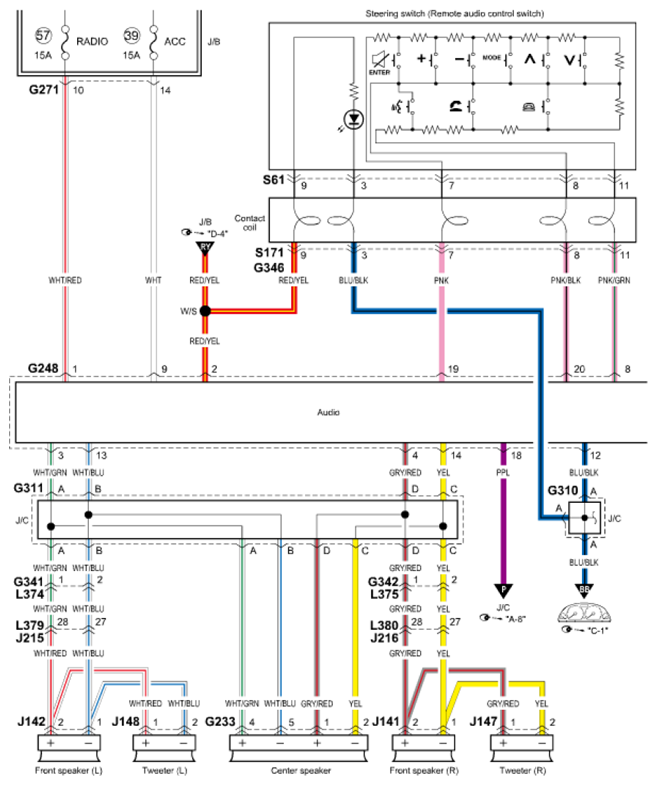

Fig 1: Audio System Circuit Diagram (Without Audio Amplifier) (1 Of 2)
G06527138Courtesy of SUZUKI OF AMERICA CORP.

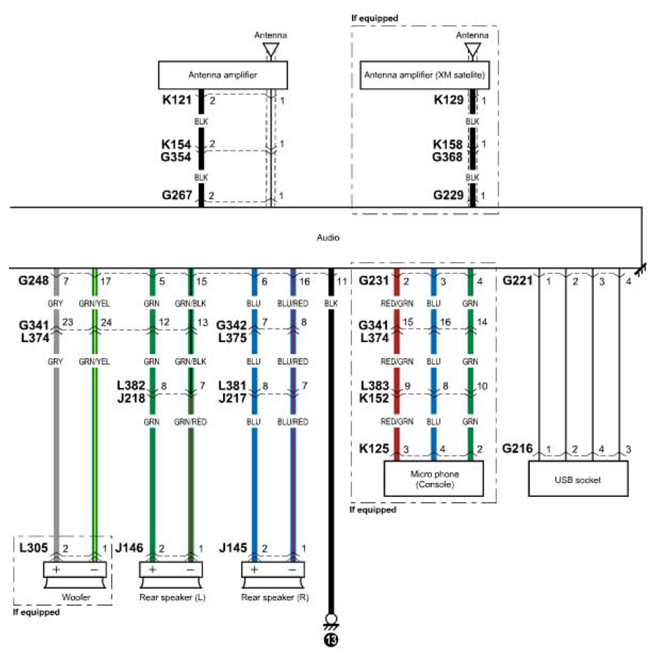

Fig 2: Audio System Circuit Diagram (Without Audio Amplifier) (2 Of 2)
G06527139Courtesy of SUZUKI OF AMERICA CORP.
