F-4 Power Steering System Circuit Diagram

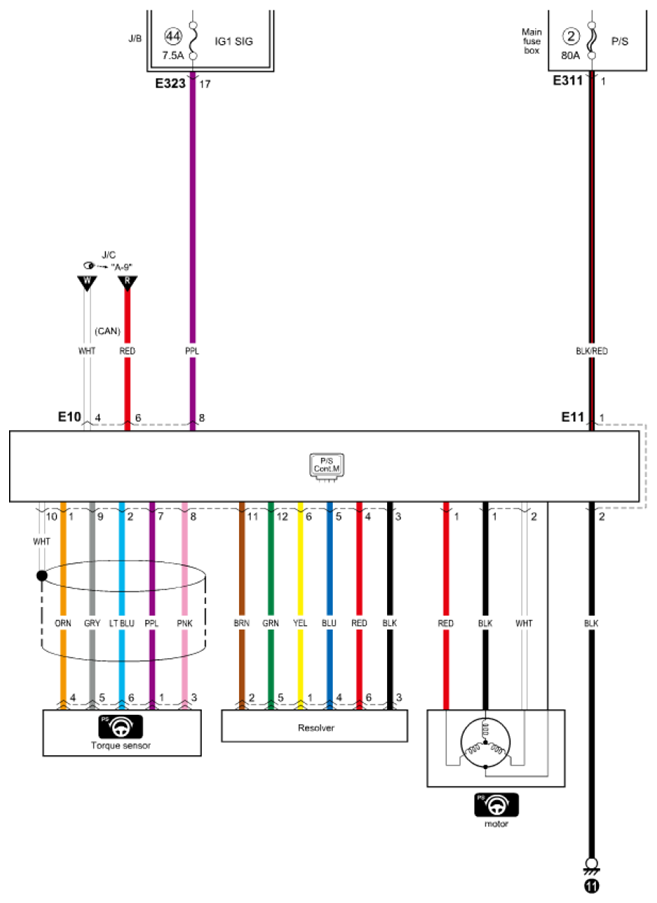

Fig 1: Power Steering System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
