D-8 Back-Up Light System Circuit Diagram

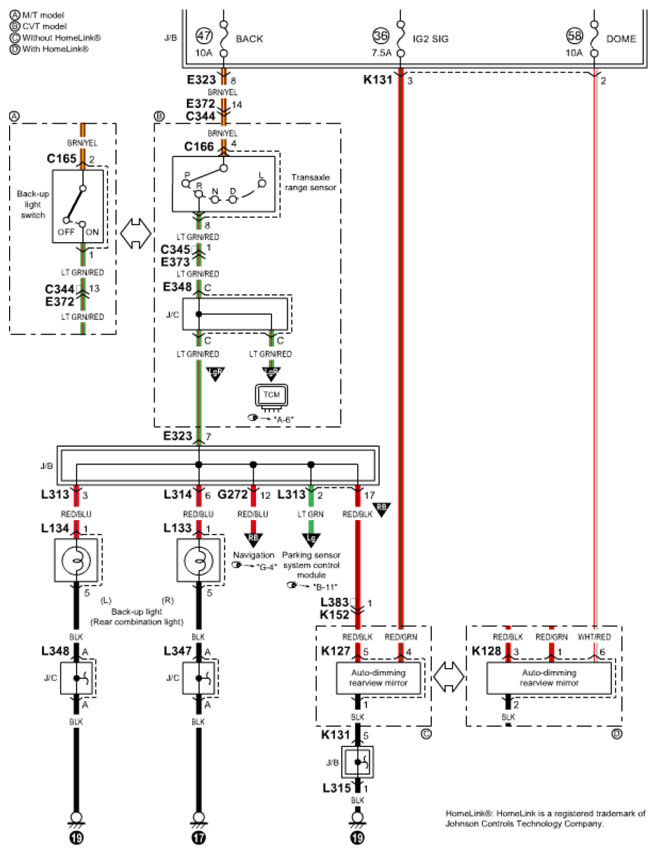

Fig 1: Back-Up Light System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
