D-6 Turn Signal and Hazard Warning Light System Circuit Diagram

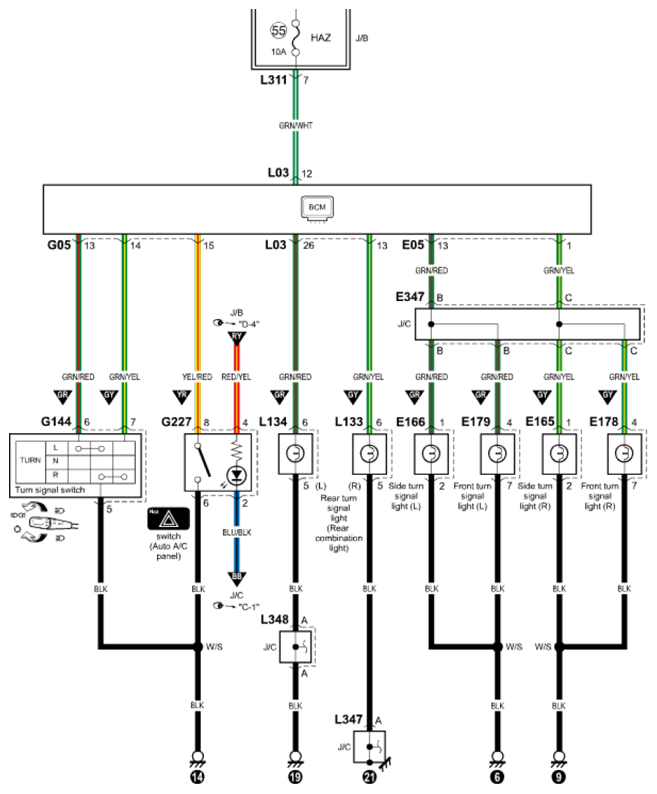

Fig 1: Turn Signal And Hazard Warning Light System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
