D-3 Front Fog Light System Circuit Diagram

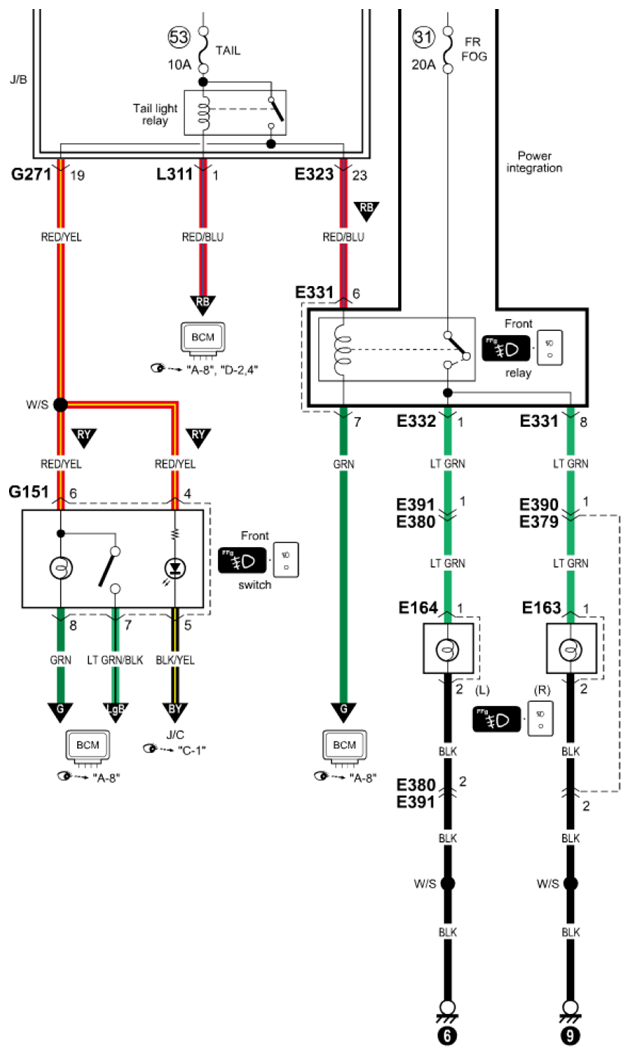

Fig 1: Front Fog Light System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
