B-9 Sunroof Circuit Diagram

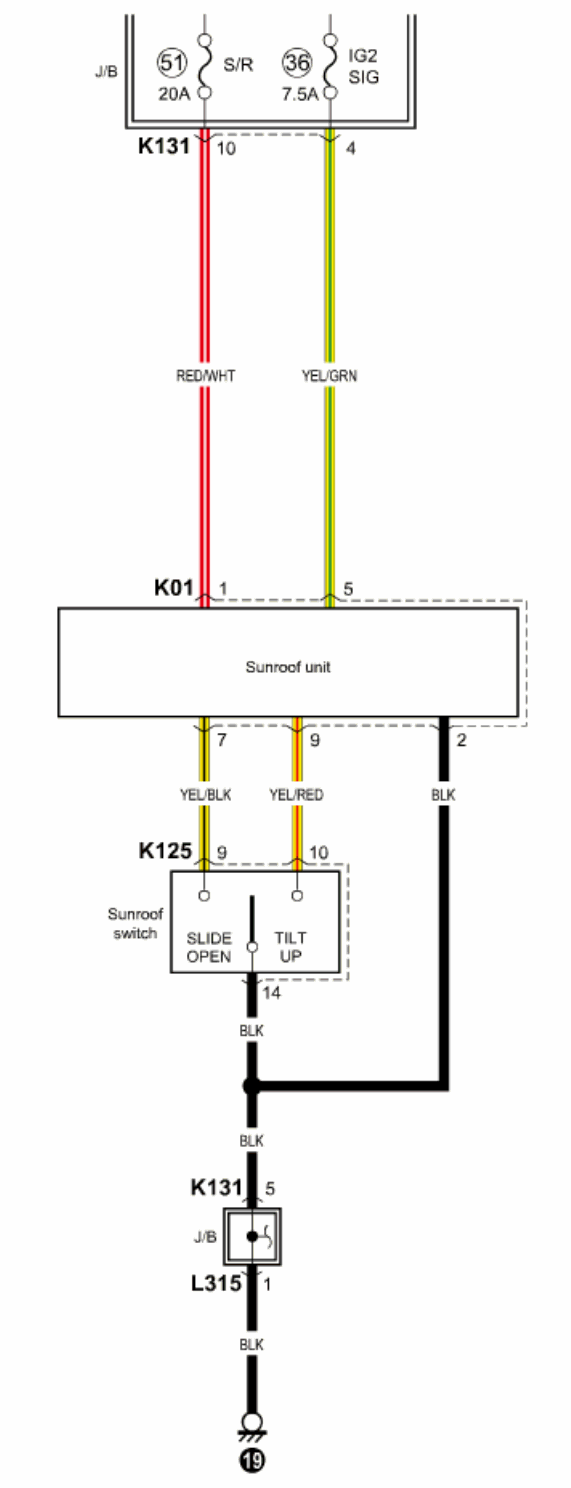

Fig 1: Sunroof Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
