B-8 Keyless Start System Circuit Diagram

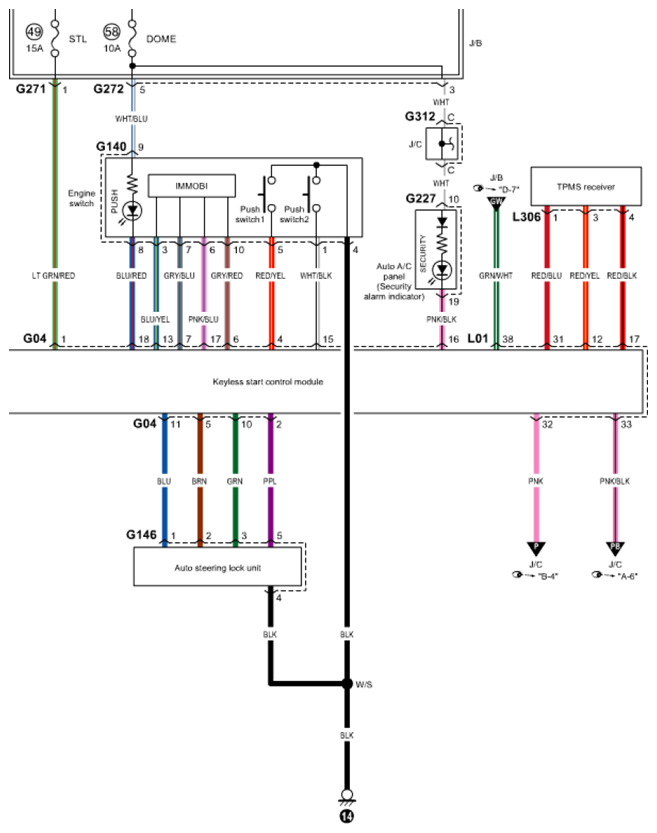

Fig 1: Keyless Start System Circuit Diagram (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

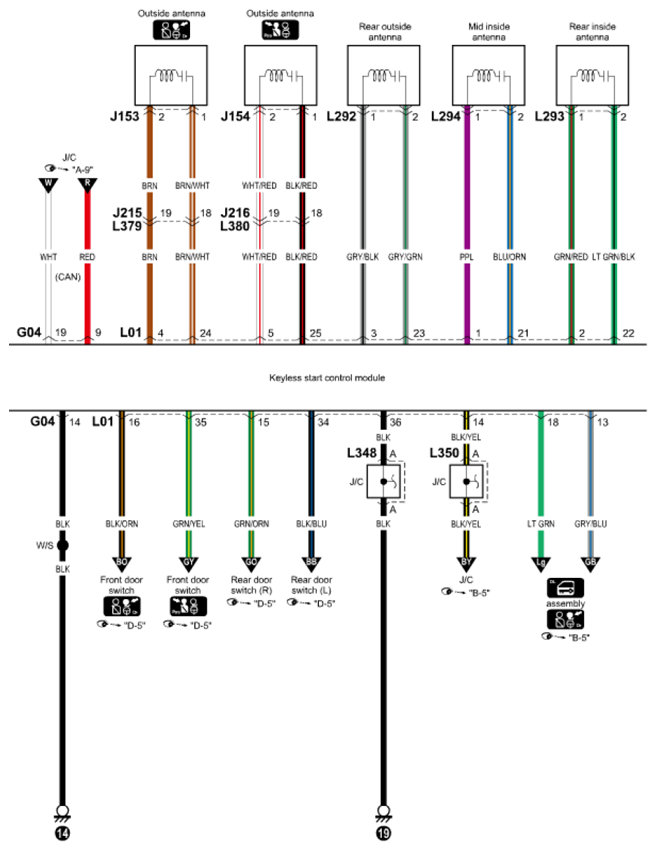

Fig 2: Keyless Start System Circuit Diagram (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

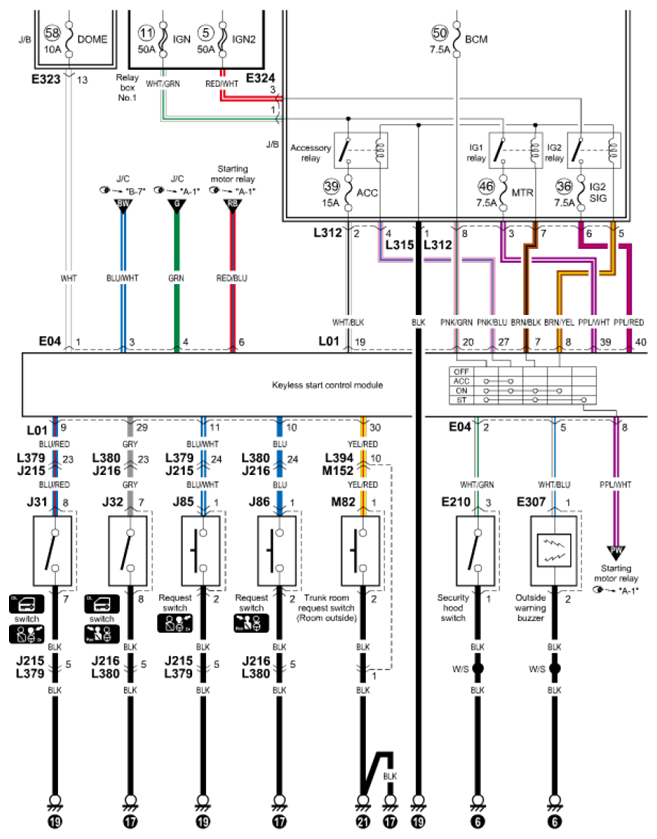

Fig 3: Keyless Start System Circuit Diagram (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
