B-4 Power Window Circuit Diagram

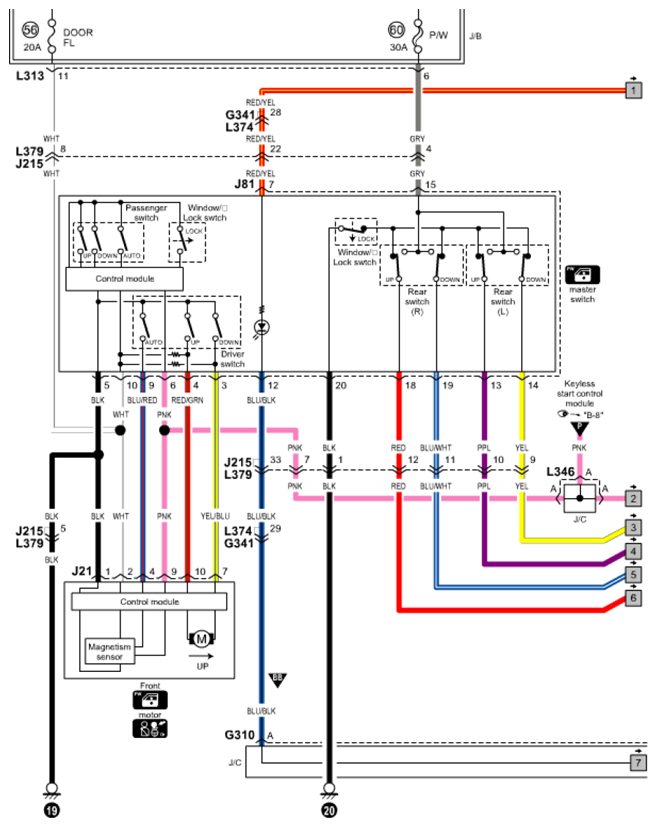

Fig 1: Power Window Circuit Diagram (1 Of 2)
G06527106Courtesy of SUZUKI OF AMERICA CORP.

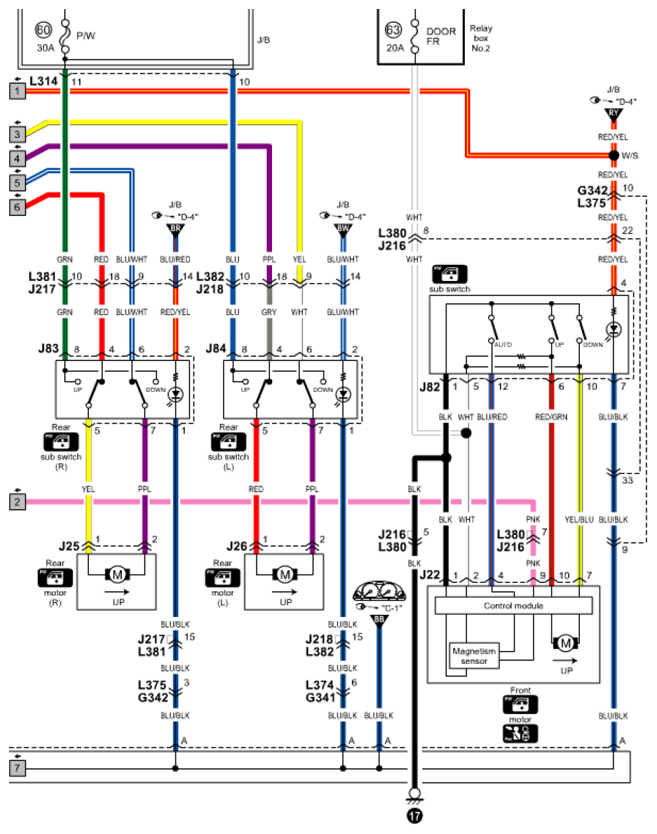

Fig 2: Power Window Circuit Diagram (2 Of 2)
G06527107Courtesy of SUZUKI OF AMERICA CORP.
