A-6 CVT Control System Circuit Diagram

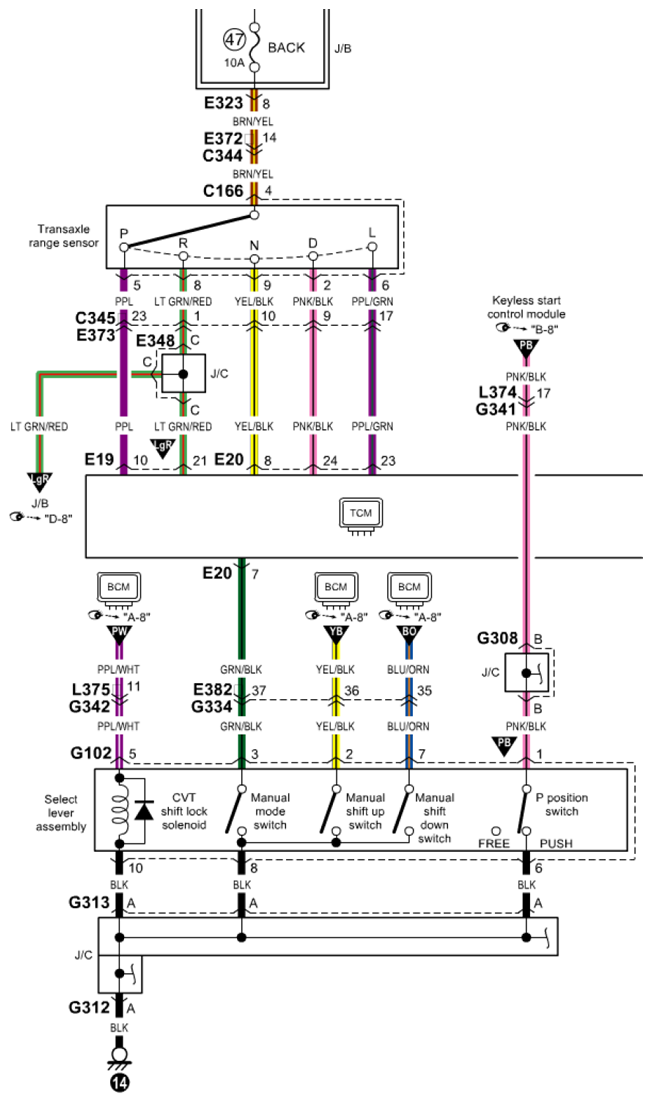

Fig 1: CVT Control System Circuit Diagram (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

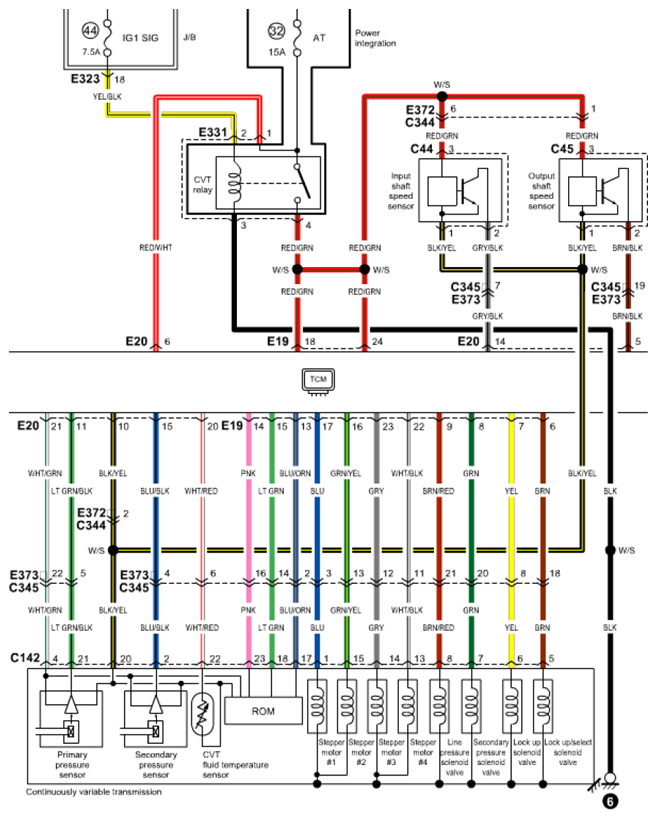

Fig 2: CVT Control System Circuit Diagram (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

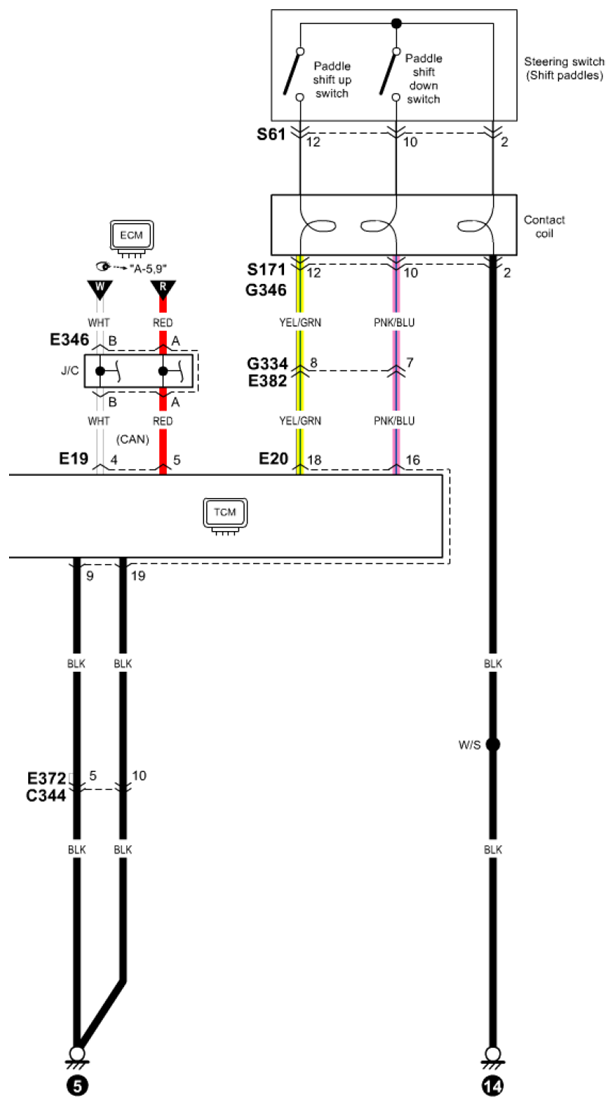

Fig 3: CVT Control System Circuit Diagram (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
