A-5 Engine and A/C Control System Circuit Diagram

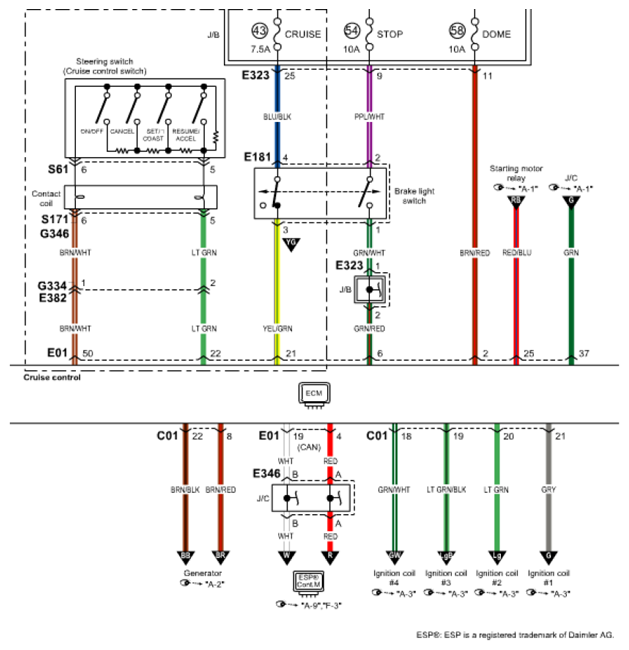

Fig 1: Engine And A/C Control System Circuit Diagram (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

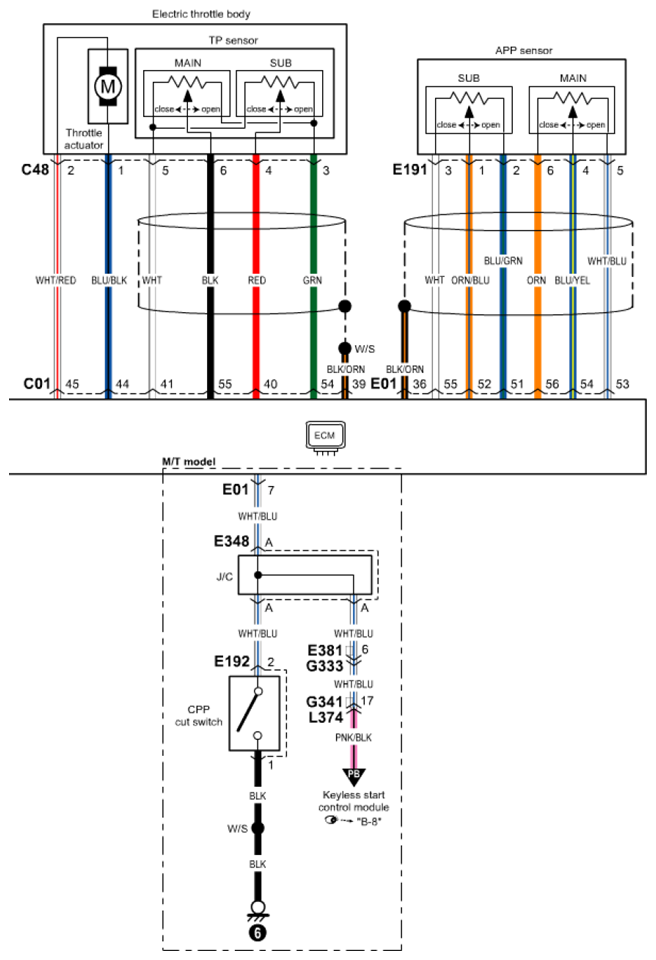

Fig 2: Engine And A/C Control System Circuit Diagram (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

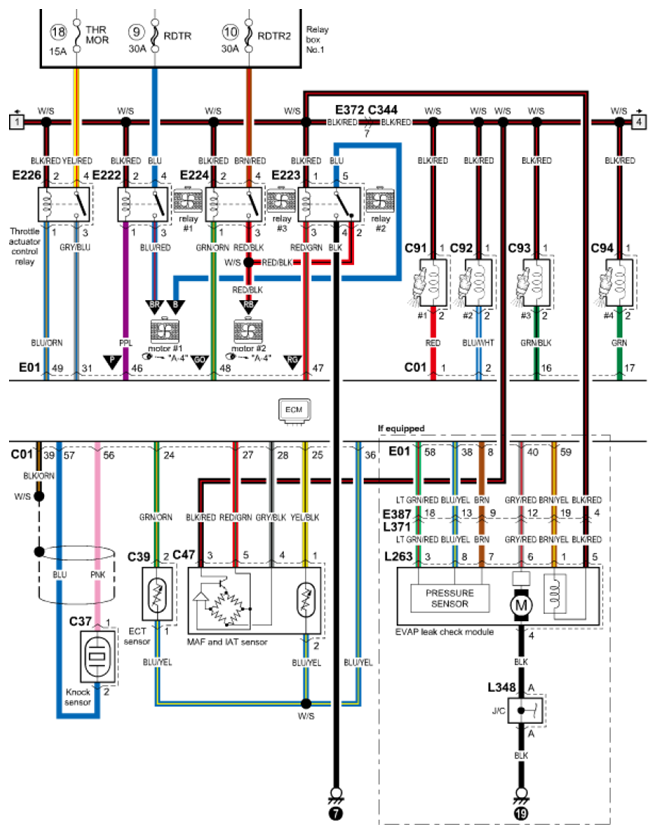

Fig 3: Engine And A/C Control System Circuit Diagram (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

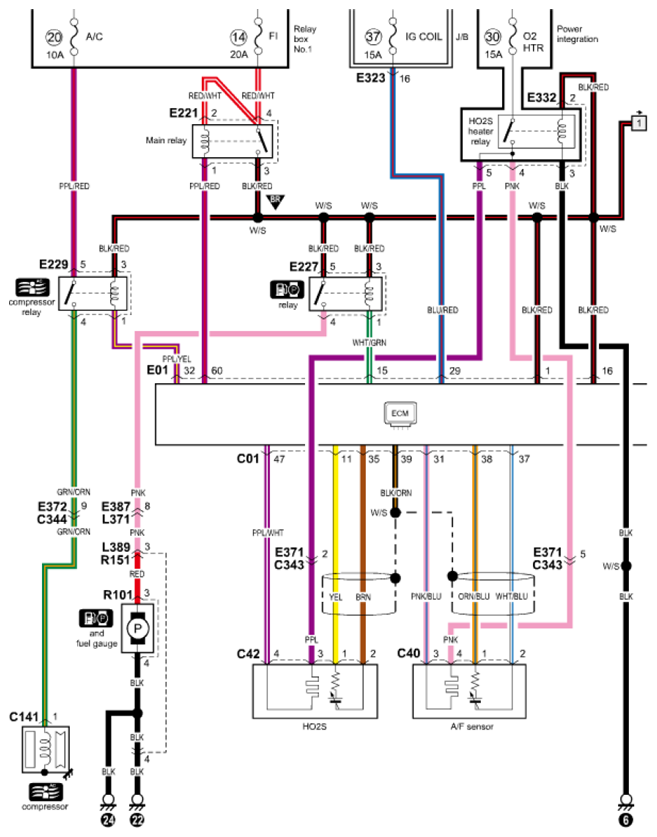

Fig 4: Engine And A/C Control System Circuit Diagram (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

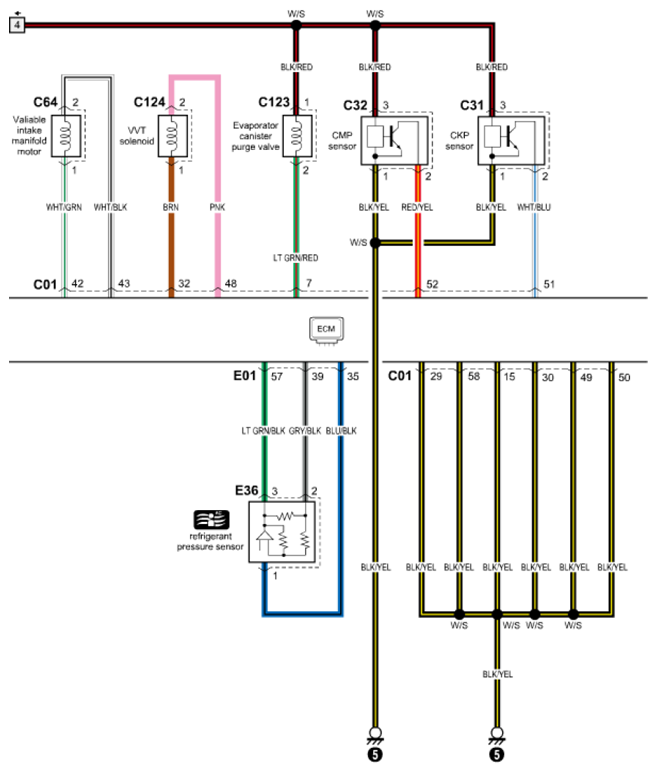

Fig 5: Engine And A/C Control System Circuit Diagram (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
