A-3 Ignition System Circuit Diagram

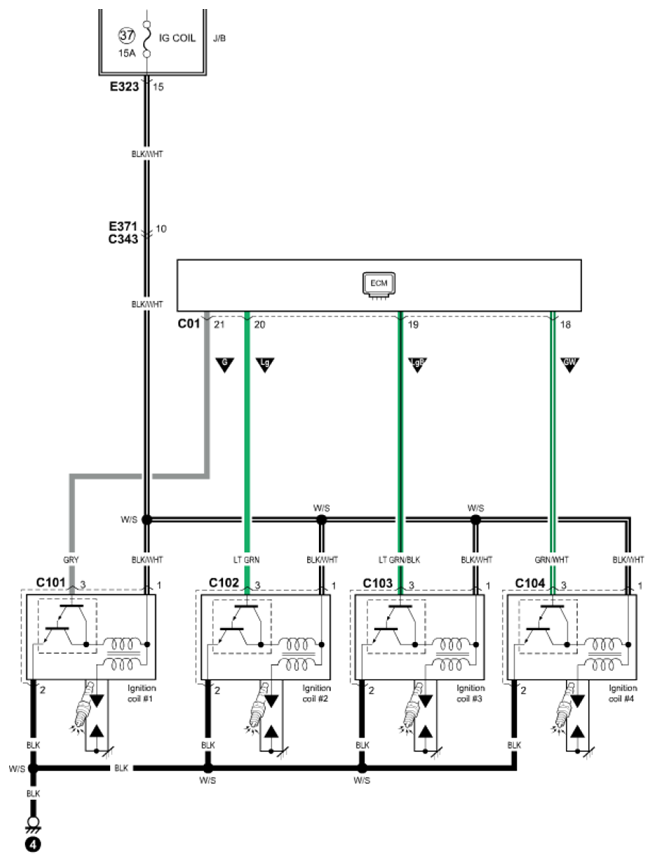

Fig 1: Ignition System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
