A-2 Charging System Circuit Diagram

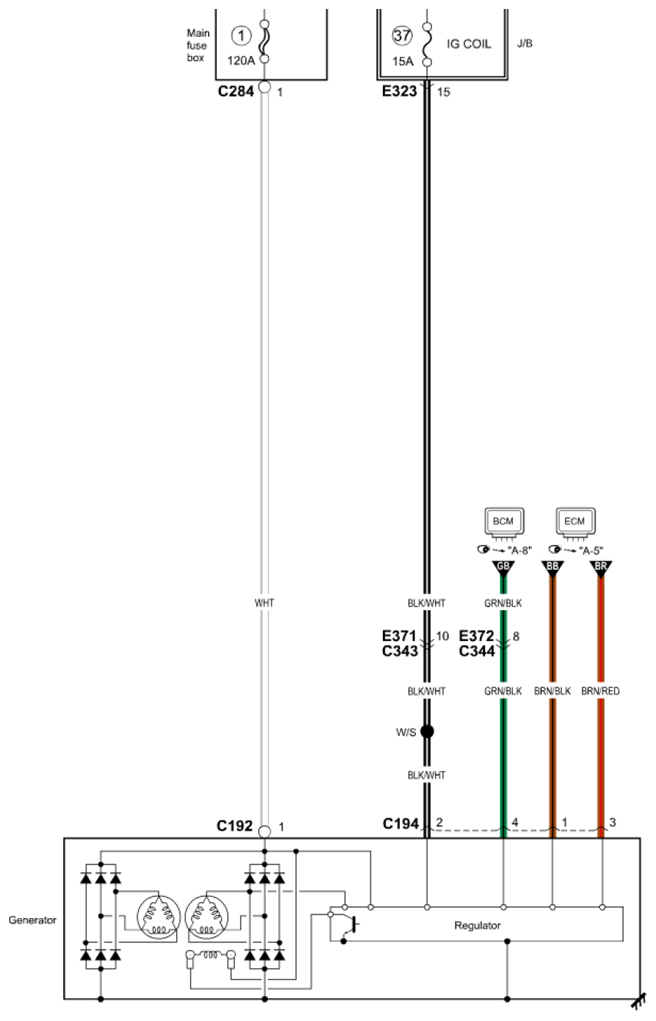

Fig 1: Charging System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
