Right Side

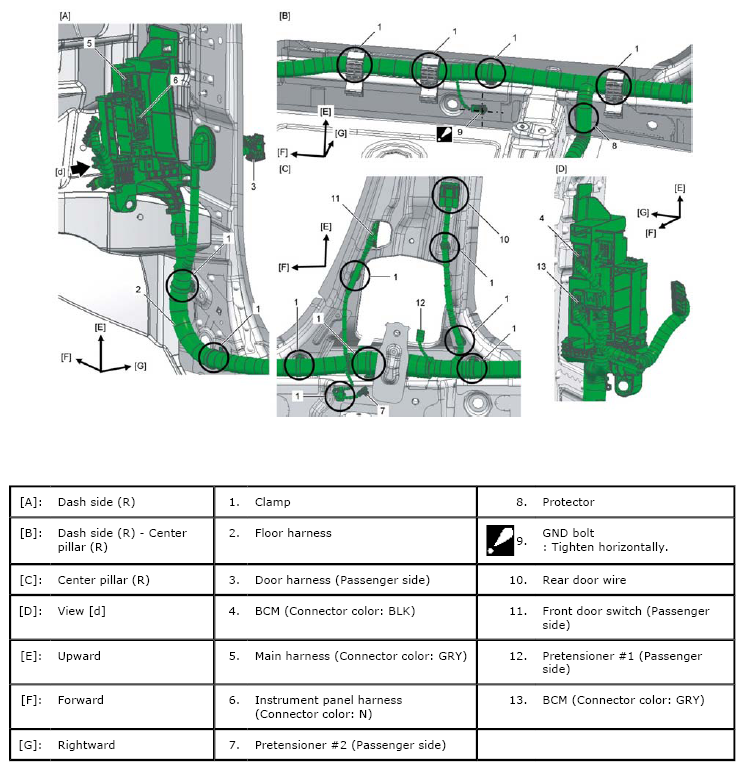

Fig 1: Identifying Wiring Harness - Right Side (1 Of 2)
G06527176Courtesy of SUZUKI OF AMERICA CORP.

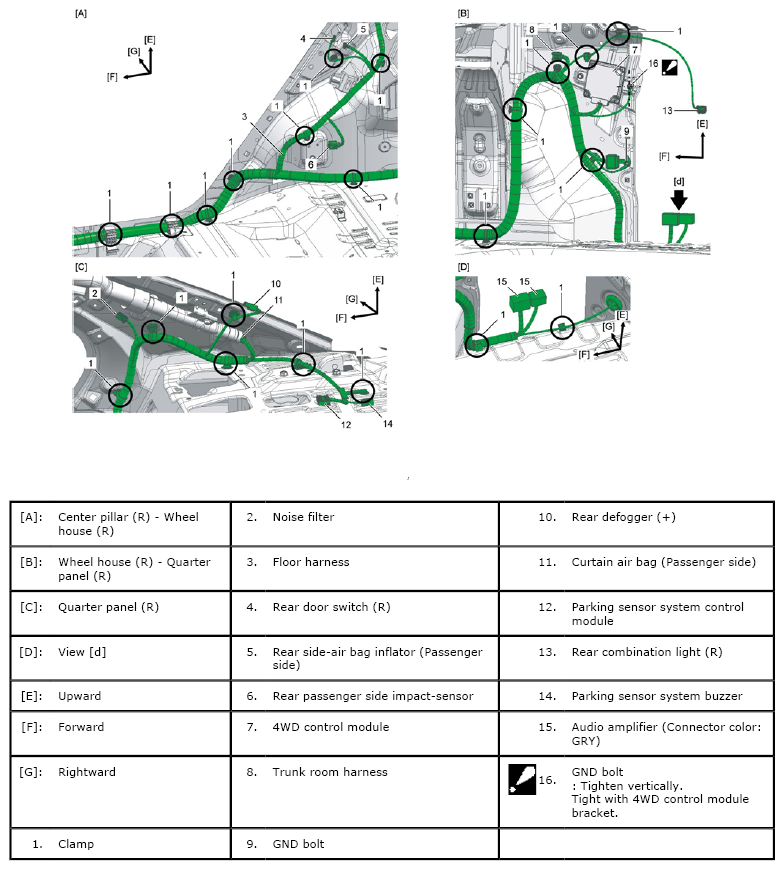

Fig 2: Identifying Wiring Harness - Right Side (2 Of 2)
G06527177Courtesy of SUZUKI OF AMERICA CORP.
