Left Side

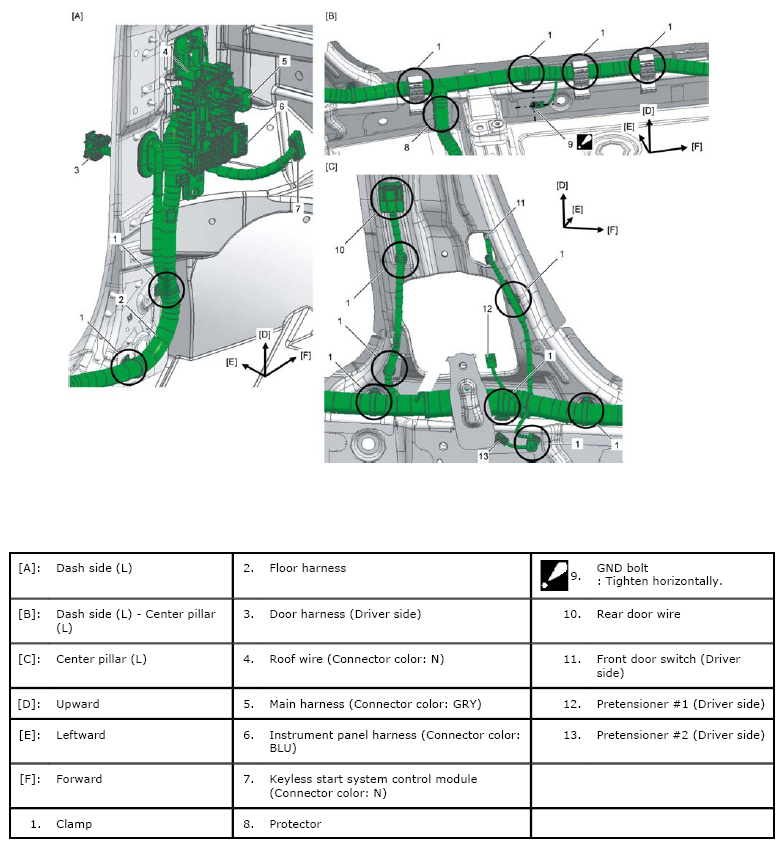

Fig 1: Identifying Wiring Harness - Left Side (1 Of 2)
G06527178Courtesy of SUZUKI OF AMERICA CORP.

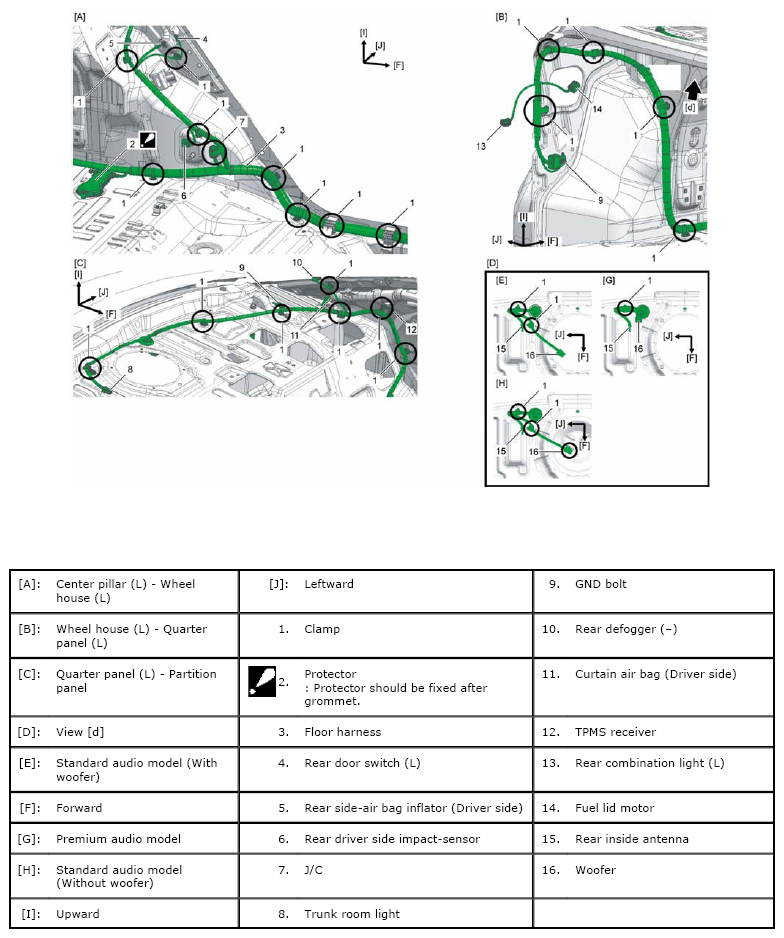

Fig 2: Identifying Wiring Harness - Left Side (2 Of 2)
G06527179Courtesy of SUZUKI OF AMERICA CORP.
