Reassembling Note for Wiring Harness
>>
Around Main Floor
>>
Front Part
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Part

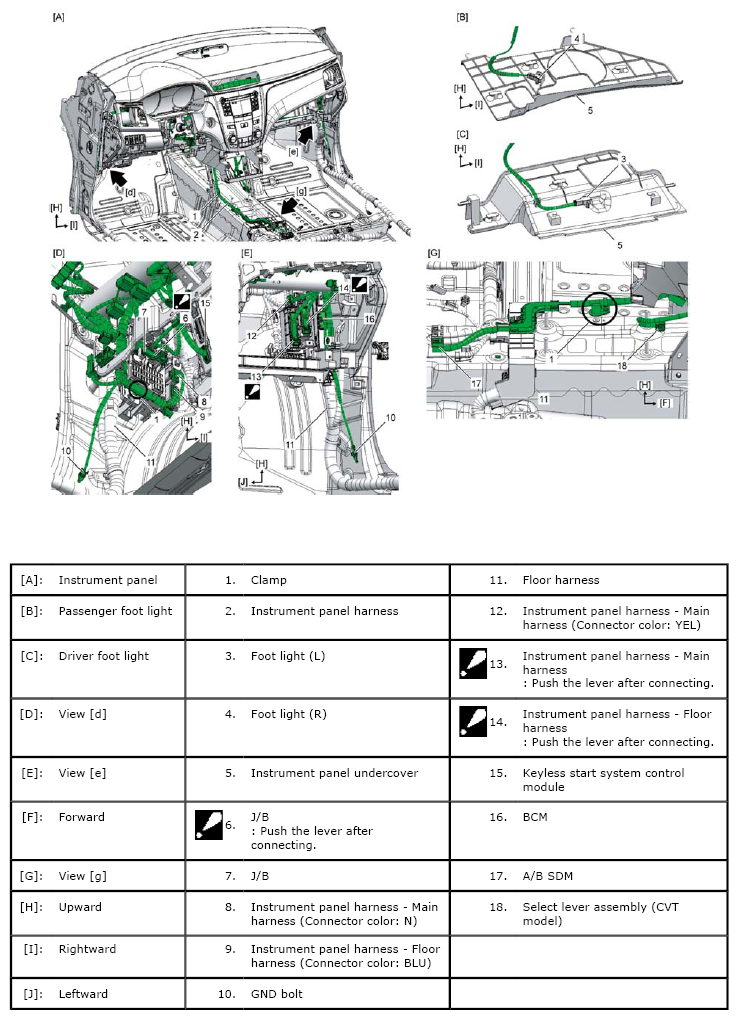

Fig 1: Identifying Wiring Harness - Front Part
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
