Inside the Instrument Panel

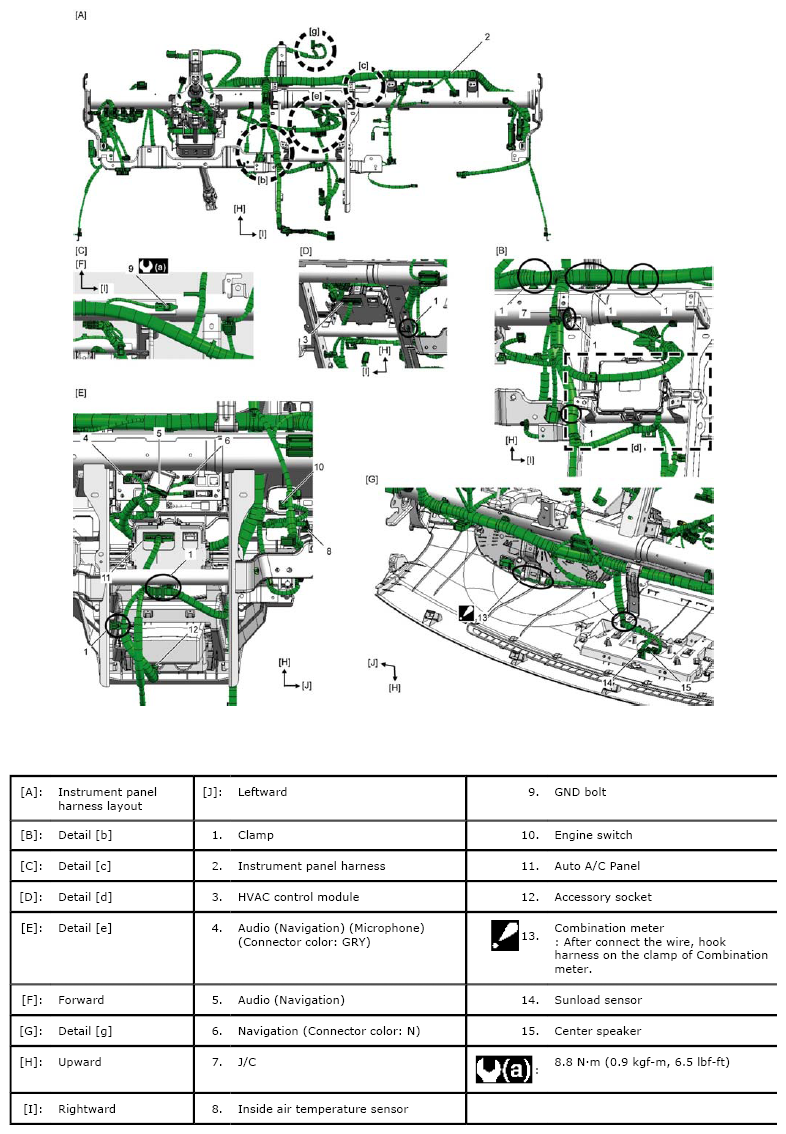

Fig 1: Identifying Wiring Harness - Inside Instrument Panel
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
