Dash Panel

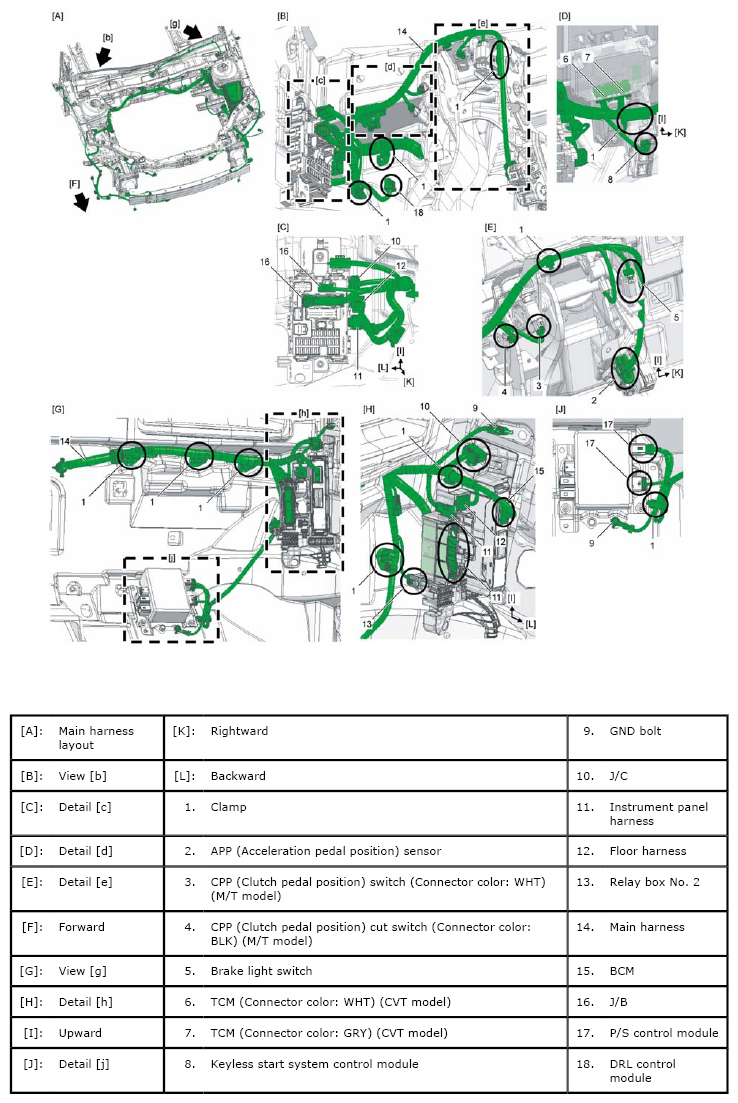

Fig 1: Identifying Wiring Harness - Dash Panel
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
