4WD Model

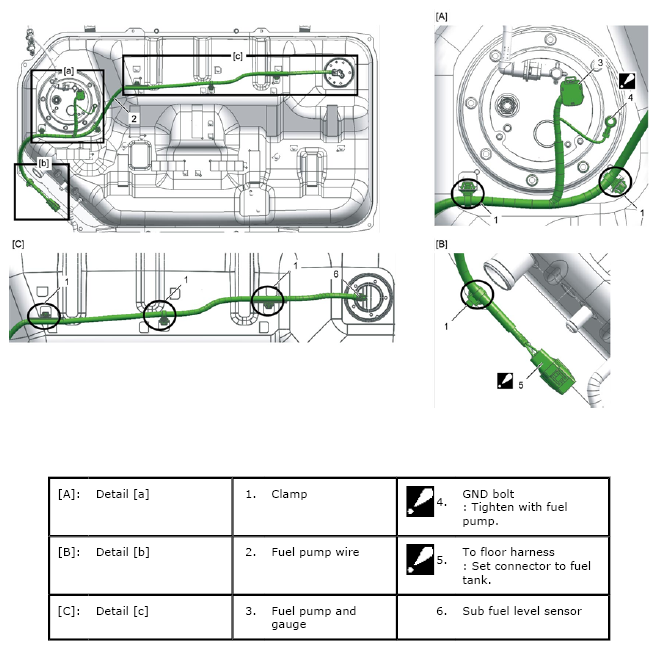

Fig 1: Identifying Wiring Harness - 4WD Model
G06527181Courtesy of SUZUKI OF AMERICA CORP.
