Reassembling Note for Wiring Harness
>>
Around Fuel Tank
>>
2WD Model
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
2WD Model

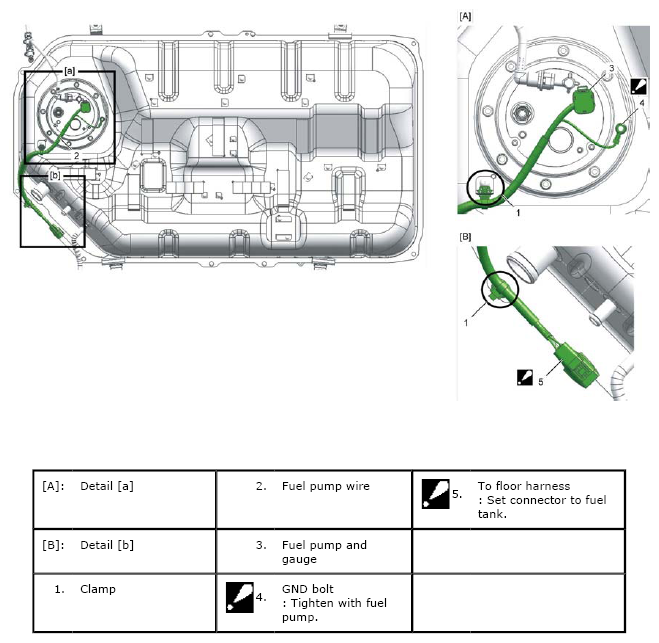

Fig 1: Identifying Wiring Harness - 2WD Model
Courtesy of SUZUKI OF AMERICA CORP.
