Relay Side

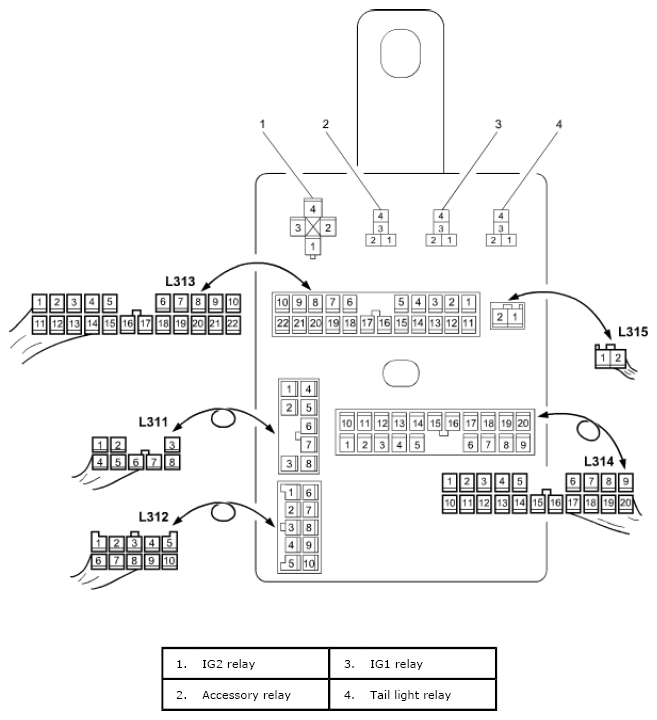

Fig 1: Junction Block (J/B) Connector Layout - Relay Side
G06527077Courtesy of SUZUKI OF AMERICA CORP.
JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
IG2 Relay
Accessory Relay
IG1 Relay
Tail Light Relay
