Fuse Side

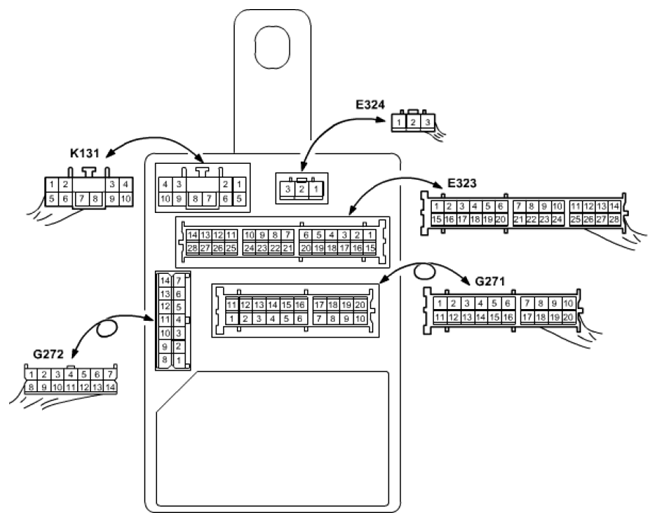

Fig 1: Junction Block (J/B) Connector Layout - Fuse Side
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
