J Connector

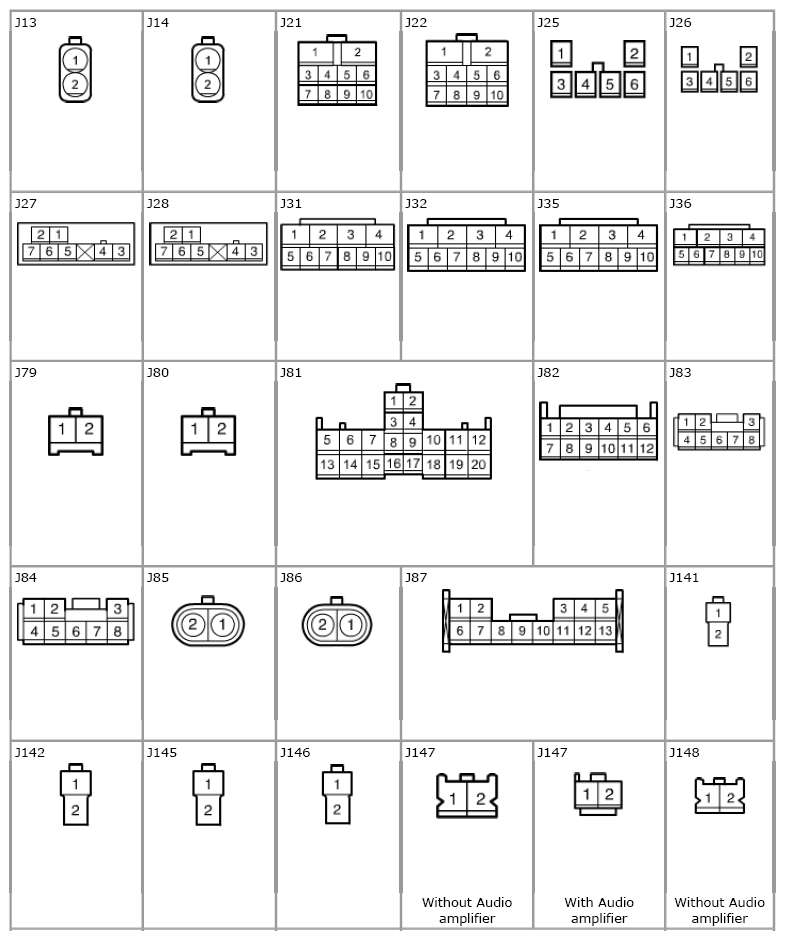

Fig 1: J Connector Chart (1 Of 2)
G06527155Courtesy of SUZUKI OF AMERICA CORP.

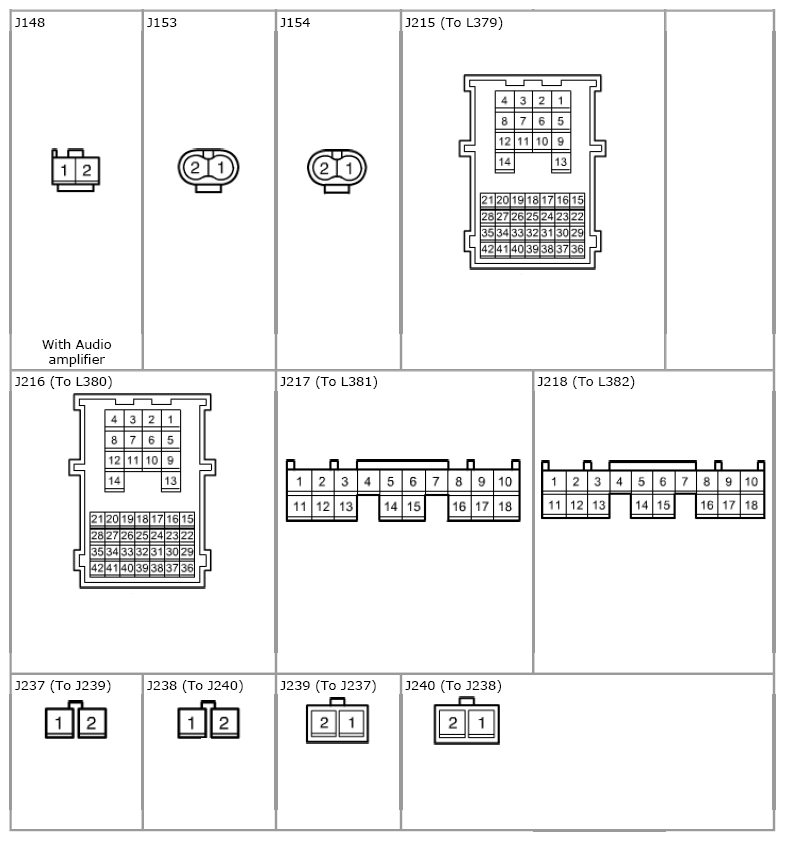

Fig 2: J Connector Chart (2 Of 2)
G06527156Courtesy of SUZUKI OF AMERICA CORP.
