E Connector

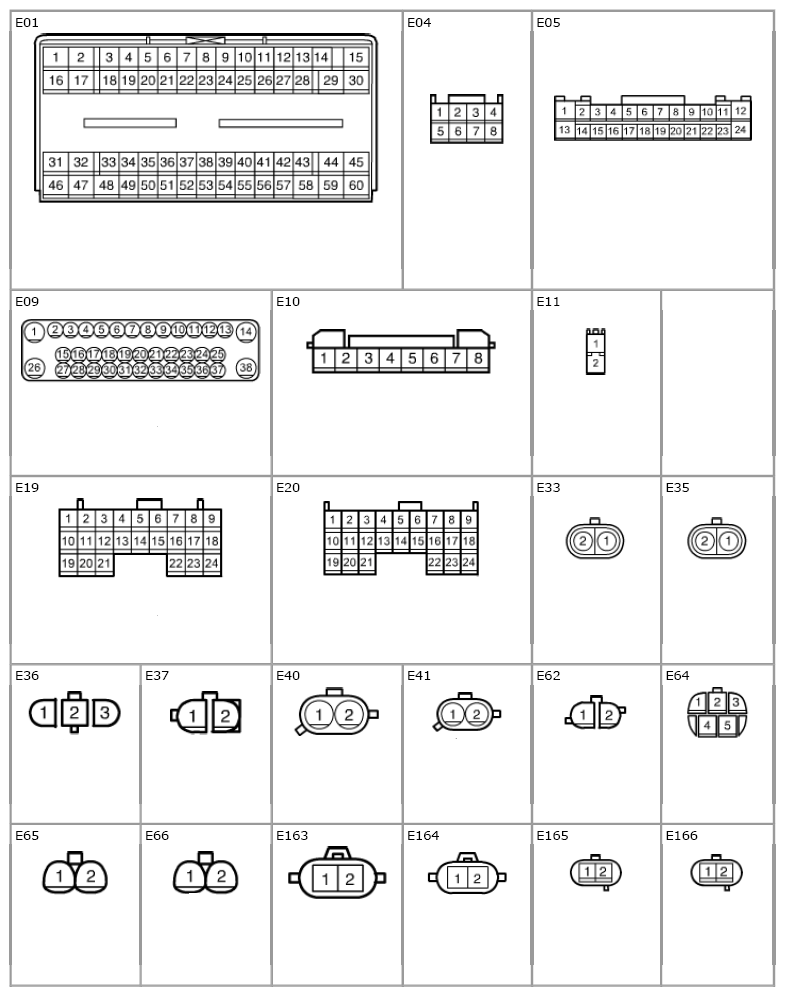

Fig 1: E Connector Chart (1 Of 3)
G06527149Courtesy of SUZUKI OF AMERICA CORP.

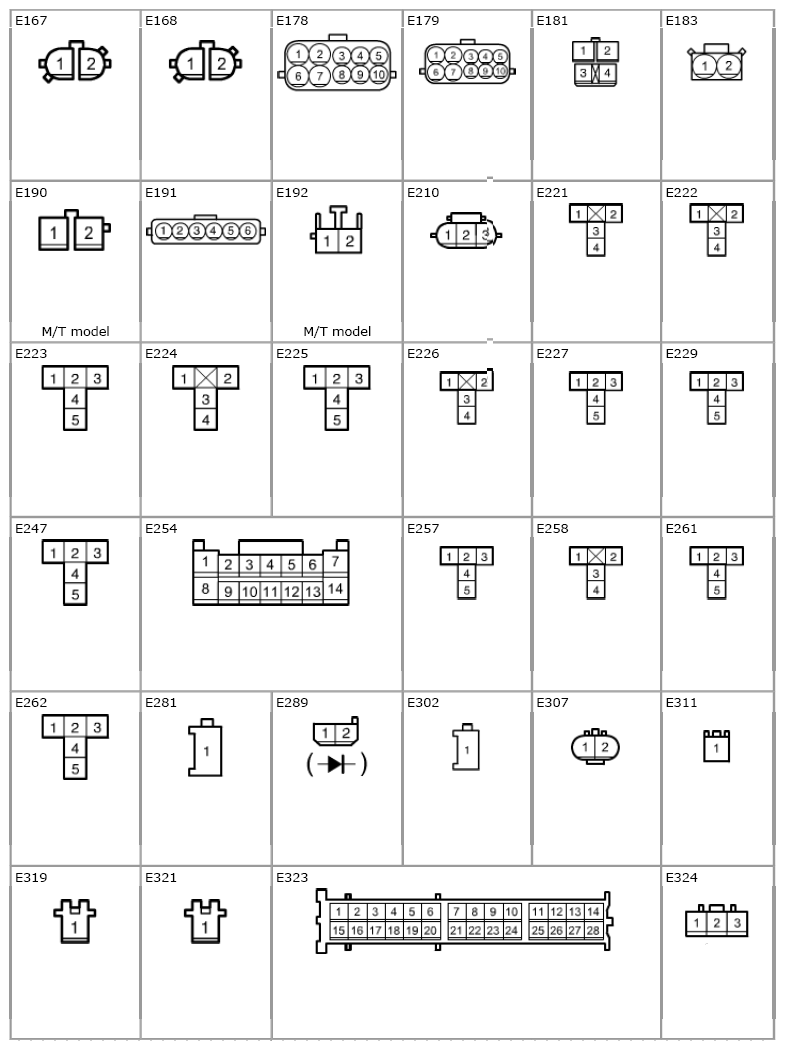

Fig 2: E Connector Chart (2 Of 3)
G06527150Courtesy of SUZUKI OF AMERICA CORP.

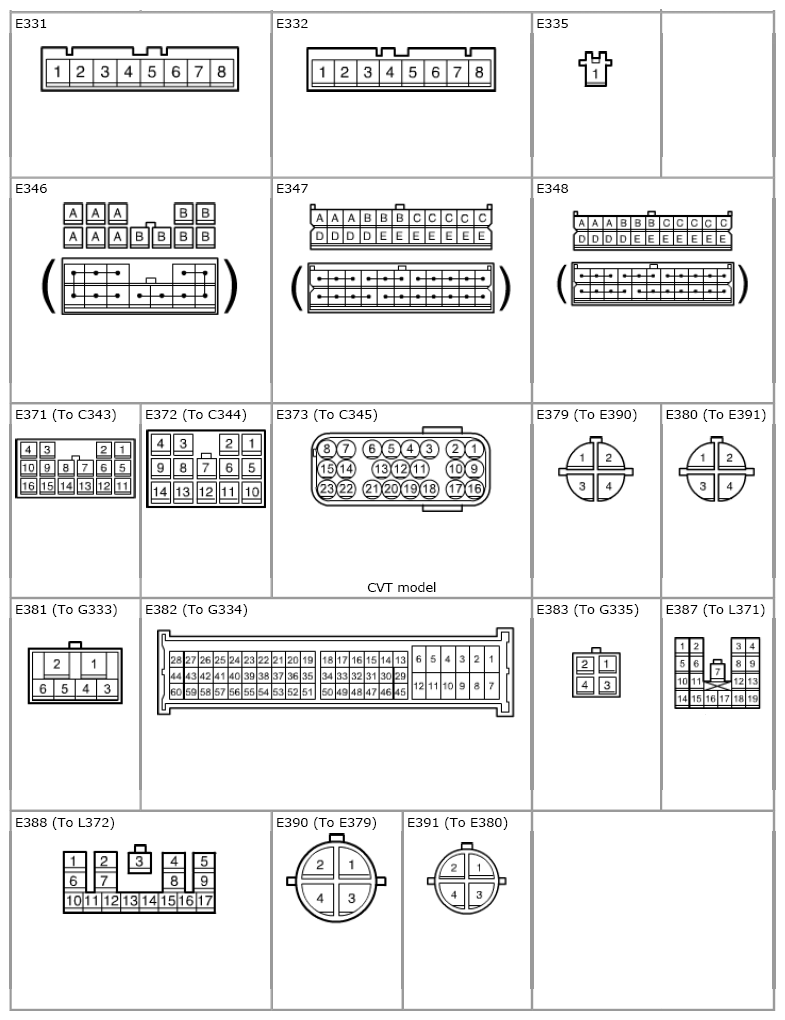

Fig 3: E Connector Chart (3 Of 3)
G06527151Courtesy of SUZUKI OF AMERICA CORP.
