Symbols and Marks

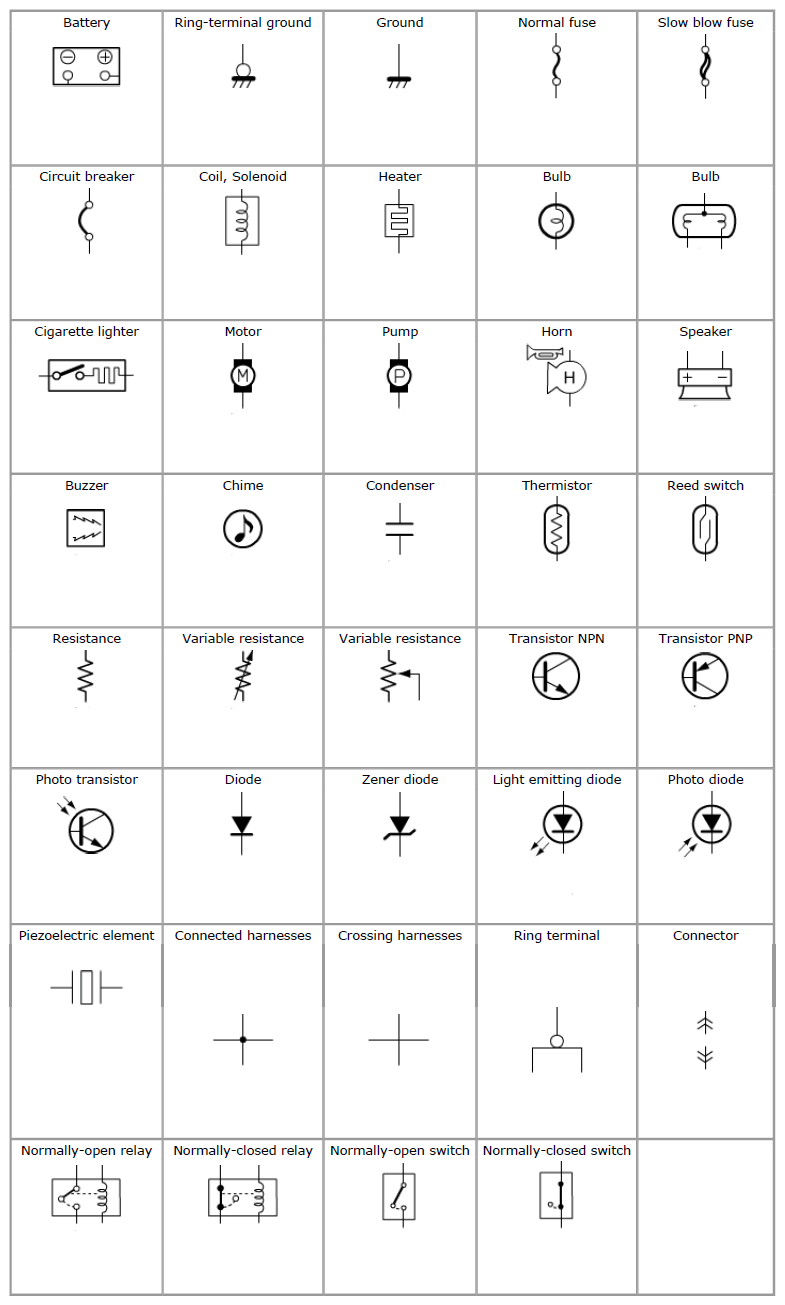

Fig 1: Symbols And Marks Chart (1 Of 2)
G06527047Courtesy of SUZUKI OF AMERICA CORP.

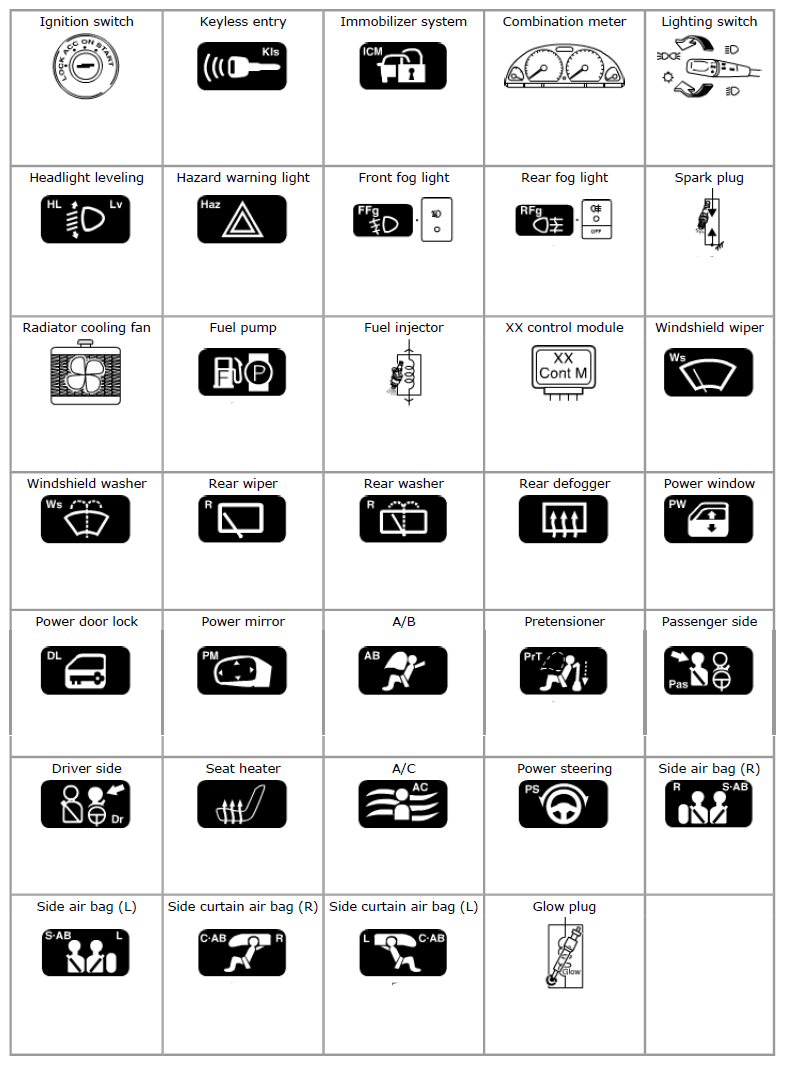

Fig 2: Symbols And Marks Chart (2 Of 2)
G06527048Courtesy of SUZUKI OF AMERICA CORP.
