E: Main Harness

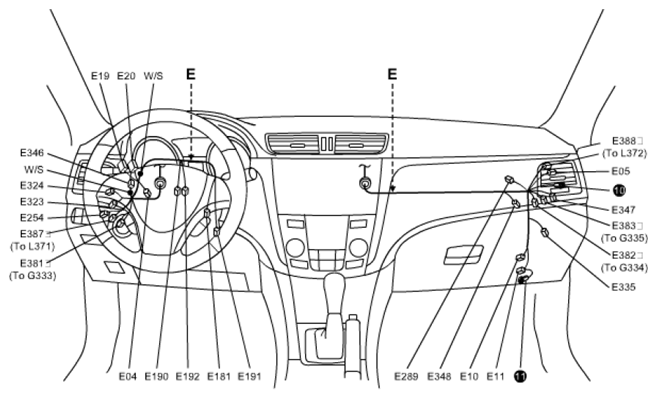

Fig 1: Instrument Panel Connector Layout Diagram - Main Harness

Courtesy of SUZUKI OF AMERICA CORP.

E: Main Harness

MAIN HARNESS REFERENCE

No.	Color	Connective position	Remarks
E04	N	Keyless start control module
E05	GRY	BCM
E10	N	P/S control module
E11	BLK	P/S control module
E19	N	TCM	CVT model
E20	GRY	TCM	CVT model
E181	N	Brake light switch
E190	N	CPP (Clutch pedal position) switch	M/T model
E191	BLK	APP (Acceleration pedal position) sensor
E192	BLK	CPP (Clutch pedal position) cut switch	M/T model
E254	GRY	DRL control module
E289	BLK	Diode
E323	N	J/B
E324	N	J/B
E335	N	Relay box No. 2
E346	N	J/C
E347	N	J/C
E348	N	J/C
E381	GRY	Instrument panel harness (To G333)
E382	N	Instrument panel harness (To G334)
E383	YEL	Instrument panel harness (To G335)
E387	GRY	Floor harness (To L371)
E388	GRY	Floor harness (To L372)
