C: Engine Harness (CVT Model)
C: Engine Harness

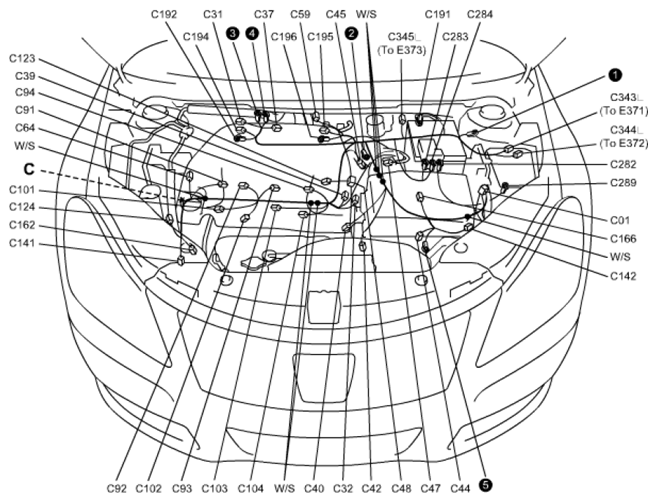

ENGINE HARNESS REFERENCE
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| C01 | GRY | ECM | |
| C31 | GRY | CKP sensor | |
| C32 | BLU | CMP sensor | |
| C37 | BLK | Knock sensor | |
| C39 | BLK | ECT sensor | |
| C40 | GRY | A/F sensor | |
| C42 | GRY | HO2S | |
| C44 | BLK | Input shaft speed sensor | CVT model |
| C45 | BLK | Output shaft speed sensor | CVT model |
| C47 | BLK | MAF and IAT sensor | |
| C48 | BLK | Electric throttle body | |
| C59 | BLK | Transfer oil temperature sensor | 4WD model |
| C64 | BRN | IMT Valve Actuator | |
| C91 | BLK | Fuel injector #1 | |
| C92 | BRN | Fuel injector #2 | |
| C93 | BLK | Fuel injector #3 | |
| C94 | BRN | Fuel injector #4 | |
| C101 | N | Ignition coil #1 | |
| C102 | GRY | Ignition coil #2 | |
| C103 | N | Ignition coil #3 | |
| C104 | GRY | Ignition coil #4 | |
| C123 | BLU | EVAP canister purge valve | |
| C124 | BLK | OCV | |
| C141 | BLK | A/C compressor | |
| C142 | BLU | Continuously variable transmission | CVT model |
| C162 | GRY | Engine oil pressure switch | |
| C165 | BLK | Back-up light switch | M/T model |
| C166 | BLK | Transaxle range sensor | CVT model |
| C191 | - | Battery (-) | |
| C192 | - | Generator (+B) | |
| C194 | GRN | Generator | |
| C195 | BLK | Starting motor | |
| C196 | - | Starting motor (+B) | |
| C282 | - | Main fuse box | |
| C283 | - | Main fuse box | |
| C284 | - | Main fuse box | |
| C289 | - | Relay box No. 1 | |
| C343 | N | Main harness (To E371) | |
| C344 | BLU | Main harness (To E372) | |
| C345 | BLK | Main harness (To E373) | CVT model |
