CAN Communication Signal

CAN (high) communication circuit signal (1):

SIGNAL SPECIFICATION

Channel	Probe	Terminal No.
1	+	L14-22 (other control module) L14-20 (BCM)
1	-	L14-10

CAN (low) communication circuit signal (2):

SIGNAL SPECIFICATION

Channel	Probe	Terminal No.
2	+	L14-23 (other control module) L14-26 (BCM)
2	-	L14-10

Measurement condition

Engine: Stop
Ignition: ON

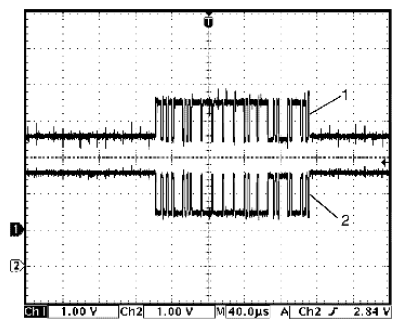

Fig 1: CAN Communication Signal Graph
Courtesy of SUZUKI OF AMERICA CORP.
