ESP® Schematic Diagram

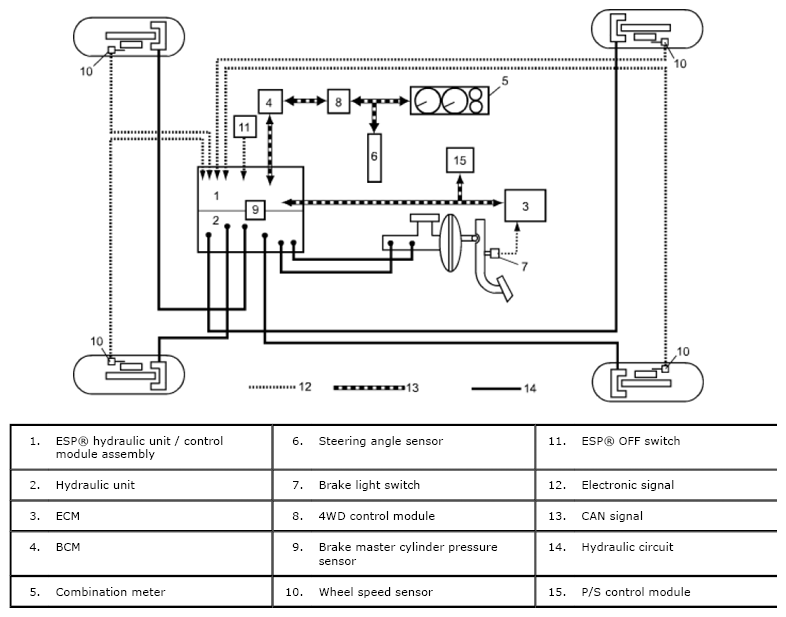

Fig 1: ESP Schematic Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
