ESP® OFF Switch Removal and Installation: Removal

  1. Remove instrument panel switch bezel, see INSTRUMENT PANEL DISASSEMBLY AND REASSEMBLY .
  2. Disconnect ESP® OFF and parking sensor OFF switch connector.
  3. Remove ESP® OFF and parking sensor OFF switch (1) from instrument panel switch bezel.

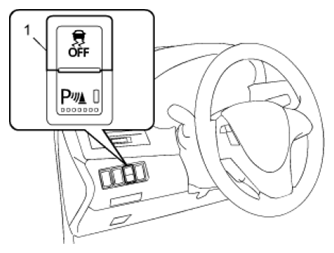

    Fig 1: Identifying Parking Sensor OFF Switch
    G06526631Courtesy of SUZUKI OF AMERICA CORP.
